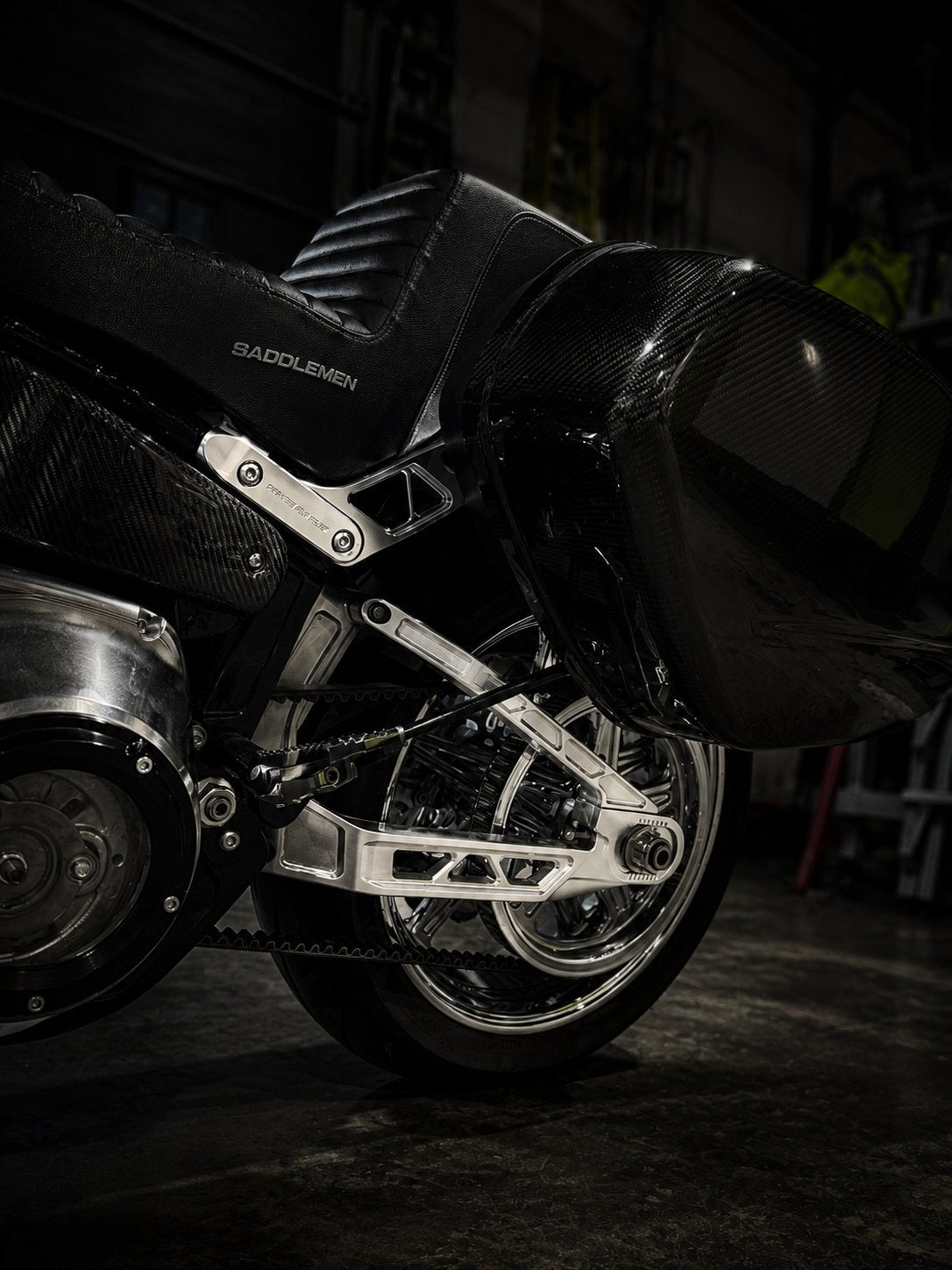

The Engineering of Performance: A Guide to the Vector Billet Swing Arm

Your high-output M8 Softail is only as fast as its weakest structural link, and for many riders, that link is the factory-pressed steel swing arm. You have likely felt that unsettling rear-end flex during aggressive cornering or noticed the chassis struggle to stabilize when you roll on the throttle. These high-speed stability issues aren't just in your head; they are the result of mechanical limitations in a component never intended for elite performance levels.

By upgrading to the Vector billet swing arm, you can finally eliminate that parasitic chassis flex and ensure every bit of torque reaches the pavement. This engineer-certified component uses aerospace-grade 6061 aluminium to provide the torsional rigidity required for high-horsepower builds while significantly reducing unsprung weight. In this guide, we'll break down the materials science and precise machining that make this Canadian-made upgrade a necessity for anyone serious about handling. You'll discover how to transform your 2018+ Softail into a machine that feels planted, predictable, and ready to perform.

Understanding the Vector Billet Swing Arm Architecture

The motorcycle swingarm acts as the primary structural link between the rear axle and the frame, serving as the literal pivot point for power delivery. In a high-performance V-Twin environment, this component must withstand immense lateral and vertical forces without compromising geometry. The Vector billet swing arm represents a shift from mass-produced compromises to precision engineering. Unlike factory components formed from stamped or cast steel, a billet arm is CNC-machined from a solid block of 6061-T6 aluminium. This subtractive manufacturing process ensures uniform grain structure and eliminates the internal porosities often found in cast parts, resulting in a component that is significantly stiffer and lighter than its stock counterpart.

The Evolution of the Softail Rear End

The 2018+ Harley-Davidson Softail platform introduced a more rigid frame and the powerful Milwaukee-Eight (M8) engine, but the factory swing arm remains a bottleneck for performance. As riders increase displacement to 114ci, 117ci, or beyond, the torque loads tax the stock chassis beyond its intended design. You'll often feel this as a vague, "mushy" sensation during hard acceleration or a lateral wiggle in mid-corner transitions. This is chassis flex. The goal of the Vector model is to provide a rigid foundation that eliminates this lateral movement. By stabilizing the rear axle, we ensure that the rear shock can actually do its job, rather than the swing arm acting as an un-damped secondary spring.

Vector vs. Mako: Choosing Your Performance Path

While both components share the same aerospace-grade DNA, they are optimized for different chassis architectures. The Vector is specifically designed for the monoshock Softail layout, utilizing a specialized geometry that handles the unique leverage ratios and mounting points of the M8 platform. In contrast, the PF Mako Billet Swing Arm is engineered for the dual-shock Touring models. The Vector billet swing arm is a performance-first structural component designed for those who prioritize mechanical integrity over aesthetic fluff. Choosing the Vector means you are investing in a part that is structural engineer stamped, ensuring that your machine can handle every bit of power you throw at it.

Aerospace Materials and Engineering Certification

Engineering a component that survives the brutal torque of a high-performance V-Twin requires more than just a lighter part. It demands a fundamental understanding of materials science and structural loading. The Vector billet swing arm isn't designed simply to look good; it's engineered to provide a rigid foundation for the 2018+ Softail platform. While many aftermarket manufacturers focus solely on weight reduction, Project Faster prioritizes structural integrity. A swing arm that is too light will flex under load, leading to the very handling issues you're trying to solve. Our focus remains on achieving the perfect balance of mass and mechanical strength, ensuring your bike stays planted when you're deep in a corner.

The Science of 6061 Aluminium

We utilize 6061-T6 aerospace-grade aluminium for its exceptional strength-to-weight ratio and fatigue resistance. This material is specifically chosen for its ability to withstand the intense stresses of high-displacement engines. Unlike cast aluminium, which can contain hidden air pockets or impurities, our billet construction ensures a uniform grain structure throughout the entire component. This consistency is vital for maintaining structural memory in high-vibration environments. The T6 tempering process further enhances the metal's hardness and yield strength, providing a level of durability that stamped steel simply cannot match. By CNC machining each unit from a solid block, we maintain tolerances that are impossible to achieve with traditional manufacturing, ensuring your rear axle remains perfectly aligned even under the heaviest acceleration.

The Certification Process

Confidence in your equipment comes from verified data, not marketing claims. Every Vector billet swing arm is structural engineer stamped, meaning the design has undergone rigorous stress testing and CAD modelling to ensure it meets strict safety standards. This certification process validates that the component can handle the extreme forces generated by high-displacement M8 engines without failure. If you're building a high-performance machine, having an engineer-certified part provides peace of mind that your chassis won't deflect or fatigue when pushed to the limit. For more details on our technical standards, you can review our Engineering Excellence Guide. If you have specific questions about fitment for your custom build, contact our engineering team for technical support. This level of oversight ensures that every part we produce is a reliable, high-performance structural necessity rather than just an aesthetic upgrade.

Real-World Performance: Handling and Rigidity

Translating material science into road-going performance requires a deep understanding of chassis dynamics. The Vector billet swing arm serves as the backbone of a high-performance Softail, turning the theoretical benefits of aerospace aluminium into tangible handling improvements. When you roll on the throttle of a modified Milwaukee-Eight, the torque doesn't just push the bike forward; it attempts to twist the entire rear assembly. A factory arm often yields to these forces, leading to drivetrain lash and a vague feeling of instability. By replacing that flex with a rigid structural member, you ensure that every Newton-metre of torque is directed toward forward momentum rather than chassis distortion.

Eliminating the "Softail Sway"

High-speed instability, frequently referred to as the "Softail sway," is often the result of lateral movement in the factory rear end. Under cornering loads, a stamped steel component can deflect, causing the tyre contact patch to shift unpredictably. This movement disrupts the bike's geometry and forces the rider to make constant micro-corrections to maintain a line. The Vector’s design resists these twisting forces through its rigid box-section architecture, maintaining a consistent tyre profile against the asphalt. This stability allows you to hold a tighter line and provides the confidence to accelerate earlier out of the apex without the rear end feeling like it's "hunting" for traction.

Optimizing the Power-to-Weight Ratio

Performance isn't just about strength; it's about the efficiency of motion. Reducing unsprung weight at the rear axle is one of the most impactful modifications you can make to a V-Twin. Because the swing arm and wheel sit below the suspension, their mass directly dictates how quickly the shock can react to road imperfections. A lighter rear end allows the suspension to track the ground more accurately, preventing the wheel from skipping over bumps or losing contact during aggressive riding. This improved tracking is essential when paired with other high-output modifications, such as the Best Exhaust for M8 Softail, ensuring that the increased power is actually usable. When you shed pounds from the rear, you reduce the inertia the shock absorber must control, leading to a more refined ride and superior mechanical grip. The Vector billet swing arm achieves this weight reduction without the structural compromises found in "lightweight-only" designs, providing a true engineer-certified performance upgrade.

Selection Guide: Finishes and Fitment

Selecting the correct finish for your Vector billet swing arm is a decision that balances aesthetic preference with long-term durability requirements. While the structural integrity remains constant across all options, the surface treatment dictates how the component interacts with the environment. Project Faster offers three primary finish categories, each serving a distinct purpose for the performance-minded rider. Whether you are building a show-quality custom or a high-mileage daily rider, the finish you choose ensures your investment remains protected against the elements.

• Raw Finish: This is the preferred choice for builders who appreciate the unrefined, industrial appearance of CNC-machined 6061 aluminium. It provides a clean foundation for those planning specialized custom paint or powder coating to match a specific theme.
• Anodized Finishes: Anodizing creates a hard, non-conductive oxide layer that is integrated with the metal itself. This results in a metallic sheen that is highly resistant to scratches and wear. It is available in several colours, including Black, Bronze, Gold, and Red.
• Cerakote Options: For riders seeking maximum thermal and chemical resistance, Cerakote provides a durable ceramic-based barrier. This finish is particularly effective at resisting road chemicals and maintaining its appearance through extreme temperature cycles.

Choosing the Right Finish for Your Environment

Maintenance requirements vary significantly between raw aluminium and coated surfaces. Raw aluminium is susceptible to road grime and requires regular polishing to maintain its original lustre. In contrast, Cerakote and anodized surfaces are much easier to clean, typically requiring only a mild detergent and water. If you ride in coastal areas or regions with heavy winter salt usage, the added barrier of a ceramic or anodized layer is a mechanical necessity to preserve the metal's surface integrity. You can specify your desired colour by adding custom notes during the checkout process on the product page.

Fitment and Compatibility

The Vector billet swing arm is engineered specifically for the 2018+ Harley-Davidson Softail (M8) platform. It is a direct fit for models such as the Fat Bob, Street Bob, and Low Rider S/ST. It is important to verify your specific model before ordering, as this component is not compatible with FXDR or Fat Boy models. Each kit includes a full titanium hardware package and a titanium axle, ensuring that the mounting system matches the elite quality of the swing arm itself. To achieve a complete performance overhaul of the rear end, many riders pair this upgrade with the PF Vector 108mm Radial Mount Brake Arm. If you are unsure about compatibility for your specific custom build, contact our technical support team for a fitment consultation.

Installation and Completing Your Performance Build

Executing a successful installation of the Vector billet swing arm requires a controlled environment and a methodical approach to mechanical assembly. This is not a superficial cosmetic change. It is a fundamental structural reconfiguration of your motorcycle's rear suspension. To perform this swap correctly, you must have access to a stable motorcycle lift, a set of calibrated torque wrenches, and precision alignment tools. Because the swing arm is a safety-critical component that dictates the tracking and stability of the machine, we strongly recommend professional installation. A certified technician possesses the specialized equipment necessary to ensure pivot bearings are correctly seated and the assembly is perfectly centred within the frame.

Upgrading Your Hardware

The transition to an aerospace-grade swing arm is the ideal moment to address the weaknesses of factory mounting hardware. Stock steel bolts are susceptible to stretching under extreme torque and can suffer from surface corrosion over time. Integrating high-strength fasteners ensures that the connection points match the rigidity of the new chassis. For a deep dive into why material choice matters at these critical junctions, consult our Titanium Bolt Kits Guide. Utilizing titanium hardware provides a superior strength-to-weight ratio and total resistance to environmental degradation, ensuring your rear-end assembly remains secure and maintenance-free through years of hard riding.

The Project Faster Ecosystem

Building a truly elite machine involves creating a synergy between various high-performance systems. The Vector billet swing arm provides the structural foundation, but the build is only complete when the engine can breathe as effectively as the chassis handles. Pairing this upgrade with the PF Liberator High-HP Exhaust ensures that your Softail has the power to match its newfound agility. This ecosystem approach guarantees that every component works in harmony to deliver a ride that is both faster and engineered to last. If you encounter technical challenges or require specific torque values for your custom configuration, you can Contact Project Faster for direct engineering support.

Final Inspection and Validation

Before you depart for the initial test ride, a rigorous validation process is mandatory. You must verify every fastener against the torque specifications provided in our technical drawings and the factory service manual. Alignment is equally critical. Use a precision gauge to confirm the rear wheel is perfectly parallel to the frame, ensuring the drive belt tracks straight and does not induce parasitic drag. During the first few kilometres, pay close attention to the increased feedback from the road. A correctly installed billet arm will feel significantly more communicative than the stock unit, providing a direct, unyielding connection between your throttle hand and the pavement.

Engineered Stability for the Modern Softail

Upgrading your chassis isn't just about shedding mass; it's about the precision of every corner and the stability of every pull. By choosing the Vector billet swing arm, you are replacing factory-pressed steel with a structural component CNC machined from 6061 aerospace aluminium. This shift eliminates the lateral flex that plagues high-torque builds, ensuring your rear wheel tracks true under load. Proudly designed for the M8 Softail platform, this engineer-certified design provides the mechanical integrity needed for elite-level performance.

You have seen how aerospace materials and meticulous machining transform suspension response and power delivery. It is time to stop compromising on handling and start riding a machine that is built to handle the torque you've invested in. If you are ready to secure your build with an uncompromising rear-end assembly, Shop the Engineer-Certified Vector Billet Swing Arm to begin your transformation. Your bike is capable of incredible things when its foundation is finally strong enough to support them.

Frequently Asked Questions

Will the Vector billet swing arm fit my 2024 Low Rider ST?

Yes, the Vector billet swing arm is a direct fit for the 2024 Low Rider ST and all other 2018+ Softail M8 models, excluding the Fat Boy and FXDR. The M8 platform utilizes a standardized mounting architecture that our design leverages for maximum structural integration. This ensures that your ST maintains its intended touring geometry while gaining the torsional rigidity required for high-speed stability on the highway.

How much weight does the Vector swing arm save over the stock Softail arm?

The Vector billet swing arm significantly reduces unsprung weight compared to the factory-pressed steel unit, though our primary engineering objective is structural rigidity. By utilizing 6061 aerospace aluminium, we shed mass from the rear-end assembly without sacrificing the strength needed for high-horsepower builds. This reduction in inertia allows your rear shock to react more quickly to road surface changes, resulting in a more refined and responsive ride.

Do I need special tools to install a billet swing arm?

You don't need proprietary tools for the installation, but a stable motorcycle lift and a calibrated torque wrench are mandatory requirements for a safe swap. The process involves removing the rear wheel, shock linkage, and pivot shaft, which requires standard heavy-duty shop tools found in most professional workspaces. Because this is a safety-critical structural component, we recommend having a professional technician verify the final torque settings and axle alignment.

Can I use my factory rear axle with the Vector swing arm?

You won't need to reuse your factory rear axle because each Vector billet swing arm includes a full titanium axle and a complete hardware package. Our titanium axle is engineered to provide superior strength and corrosion resistance while further reducing the total unsprung mass of the rear end. This ensures that the entire axle assembly matches the high-performance standards of the billet arm, providing a cohesive and reliable structural foundation.

What is the difference between an anodized and a Cerakote finish?

Anodizing creates a hard, metallic finish that is integrated into the aluminium surface, while Cerakote is a ceramic-based coating that offers superior thermal and chemical resistance. Anodized finishes provide a classic high-end look with excellent scratch resistance. Cerakote is the preferred choice for riders who frequently encounter road salt and harsh environmental debris, as it provides an uncompromising barrier against corrosion and chemical degradation.

Is the Vector swing arm engineer-certified for street use in Canada?

Yes, every Vector billet swing arm is structural engineer stamped and includes the necessary technical drawings to verify its mechanical integrity. This certification ensures that the component has been analyzed for the specific stresses encountered during high-performance street use. Being a Canadian-made product, we prioritize rigorous engineering standards to provide riders with absolute confidence in the safety and durability of our chassis upgrades.

Does the swing arm come with new bearings and spacers?

Our swing arm kits are designed for a streamlined installation and include a full titanium hardware package along with a titanium axle. While the kit provides the critical fasteners and the axle assembly, you should verify your specific bearing requirements based on your wheel and pivot configuration. Providing a complete, engineer-certified solution is our priority, ensuring that the interface between the frame and the new arm is secure and precise.

How does a rigid swing arm affect the ride quality on long trips?

A rigid swing arm improves long-distance ride quality by making the motorcycle feel more planted and predictable, which ultimately reduces rider fatigue. When you eliminate the lateral "hunting" and flex associated with factory steel arms, the bike tracks straighter with fewer micro-corrections required at the handlebars. This stability is especially noticeable when the bike is loaded with luggage or encountering heavy crosswinds, providing a more confident touring experience.
