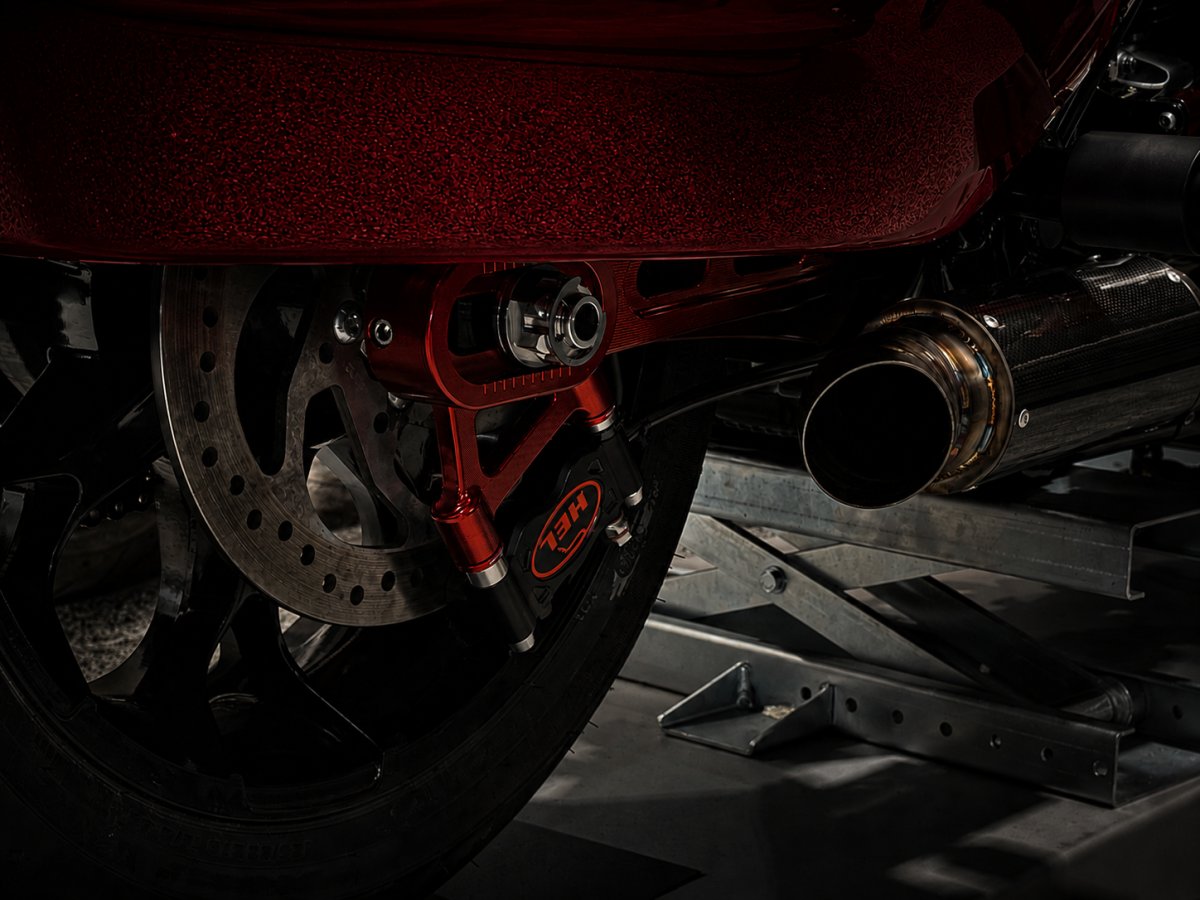

Engineering Maximum Rigidity: The PF Vector 108mm Radial Mount Brake Arm Guide

A "spongy" rear brake lever isn't just a nuisance; it's a clear signal that your hardware is flexing under the exact pressure where it should be most rigid. For riders pushing 2018 and newer Softail models to their limits, the stock axial mounting system often fails to provide the stability required for aggressive maneuvers. This mechanical weakness creates an unpredictable braking feel that undermines the confidence you need on the road. Integrating the PF Vector 108mm Radial Mount Brake Arm into your build solves this by replacing compromise with aerospace-grade precision.

We understand that you've likely invested in high-end performance upgrades and expect your braking system to match that same level of engineering excellence. This article will show you how the PF Vector 108mm Radial Mount Brake Arm eliminates caliper flex to deliver controlled, professional-grade stopping power. We'll examine the technical advantages of radial mounting, the benefits of CNC-machined aluminum, and how this component perfectly complements a high-performance billet swingarm setup.

The Evolution of V-Twin Braking: Why Radial Mounting Matters

The V-Twin performance market has undergone a significant shift. Riders are no longer satisfied with components that merely look the part. They demand hardware that survives the physics of high-torque output. As modern builds push toward higher horsepower, the limitations of factory braking systems become glaringly obvious. The PF Vector 108mm Radial Mount Brake Arm represents this evolution. It moves away from the aesthetic-first mentality toward a standard of uncompromising mechanical rigidity. Aggressive riders on heavy 2018+ Softail models often discover that stock hardware is the weakest link in their chassis. When you increase power without addressing the stopping system, you aren't just compromising performance; you're ignoring the fundamental requirements of physics.

The Weakness of Factory Axial Mounts

Standard axial mounts utilize bolts that run perpendicular to the brake rotor. This design creates an inherent mechanical disadvantage known as the lever effect. When you apply heavy braking pressure, the caliper attempts to rotate around those mounting points. This creates microscopic twisting or "caliper flex." This flex manifests at the handlebar as a spongy, inconsistent lever feel that undermines rider confidence. In aggressive riding scenarios, this lack of stability leads to increased heat and eventual brake fade. The pads are no longer making perfectly flat contact with the rotor surface because the hardware is literally bending under the load. For a high-horsepower performance build, this mechanical compromise is unacceptable. You need a system that remains dead-still under the highest thermal and physical stress.

The Radial Advantage: Rigidity and Alignment

Radial mounting solves this by aligning the mounting bolts parallel to the plane of the rotor. This configuration allows the PF Vector 108mm Radial Mount Brake Arm to distribute braking torque more evenly across the entire mounting structure. By securing the caliper at both ends with bolts that follow the direction of the wheel's rotation, the system effectively eliminates the shear forces that plague axial designs. Radial mounted calipers provide superior centring over the disc. This ensures that every millimetre of pad surface is utilized efficiently. This precise alignment reduces uneven wear and improves heat dissipation, providing a predictable bite even during repeated hard stops. Radial mounting is the definitive standard for elite-level chassis integrity and controlled deceleration.

This transition in the industry marks a move toward functional performance. We've moved past the era of chrome covers and entered an era of precision engineering. The focus is now on how a component behaves under load. By reducing the distance between the mounting bolts and the caliper pistons, radial designs minimize the leverage that causes flex. The result is a direct, linear connection between your fingers and the rear tyre. It transforms the braking experience from a guessing game into a precise, repeatable action.

Engineering the PF Vector 108mm Radial Mount Brake Arm

The PF Vector 108mm Radial Mount Brake Arm isn't just a bracket; it's a structural component engineered to withstand the extreme torque loads of high-horsepower Softails. While cast imports often rely on mass-production shortcuts, our approach prioritizes mechanical integrity. We manufacture every unit in Canada to ensure that tolerances are kept within microns, not millimetres. This precision is essential because even a slight misalignment in the braking assembly can lead to uneven pad wear or catastrophic hardware failure. By controlling the entire manufacturing process, we guarantee a component that survives the harshest riding environments without sacrificing performance.

Aerospace-Grade Materials and Machining

We start with solid blocks of aerospace-grade aluminum. Unlike cast alternatives that can hide internal porosity or structural inclusions, billet aluminum provides a predictable and uniform grain structure. Our CNC-machining process is deliberate. We remove every gram of unnecessary weight while reinforcing the areas subject to the highest stress. This creates an optimal strength-to-weight ratio that cast parts simply cannot match. After the machining is complete, each part undergoes a meticulous deburring and finishing process in our Canadian facility. This ensures that the fitment is as precise as the engineering, providing a seamless interface with your bike's rear-end assembly.

108mm Spacing: The Performance Standard

The 108mm bolt-to-bolt spacing is the global standard for Japanese-style radial calipers, including those from manufacturers like Tokico and Nissin. This specific dimension is favoured in the performance world because it opens the door to a massive variety of high-performance brake pads. Whether you're looking for sintered race pads or high-friction street compounds, the 108mm standard ensures you won't be limited by hardware availability. You can explore our full Braking collection to see how this fits into your wider build strategy and choose the caliper that best suits your stopping requirements.

Durability is non-negotiable for a component that sits in the path of road debris and extreme heat. We offer the PF Vector 108mm Radial Mount Brake Arm in several finish options to suit your environment and aesthetic. Raw aluminum is available for those who prefer a purely industrial, machined look. For riders in harsher climates or those seeking specific colour coordination, we provide Cerakote and Anodized finishes. These coatings aren't just for show. They protect the substrate from road salt, debris, and thermal cycling. If you have questions about custom finish lead times, feel free to connect with our team to discuss your specific requirements and ensure your build stays on schedule.

108mm vs. 100mm: Choosing the Right Vector Brake Arm

Selecting the correct radial mount isn't a matter of aesthetic preference; it's a matter of technical compatibility. In the performance motorcycle industry, radial calipers are divided into two primary bolt-spacing standards. European manufacturers, such as Brembo, typically utilize a 100mm spacing. Conversely, Japanese brands like Tokico and Nissin, along with many domestic aftermarket performance calipers, adhere to the 108mm standard. This distinction is absolute. You cannot force a 100mm caliper onto a 108mm mount without compromising the structural integrity of the entire braking system. Choosing the PF Vector 108mm Radial Mount Brake Arm ensures that your hardware matches the physical requirements of your chosen caliper.

The 108mm Standard for Softail Builds

The 108mm Vector is the definitive choice for riders building high-performance 2018+ Softails. This spacing is favoured because it accommodates the most widely available 4-piston and 6-piston calipers used in performance builds. Beyond just bolting the parts together, the brake arm dictates the exact radius where the caliper sits. This positioning is vital for maintaining the correct rotor-to-pad contact patch. If the caliper sits too high or too low, you'll experience uneven pad wear or a reduction in effective braking surface area. Whether you're running factory rotors or oversized aftermarket discs, fitment must be exact. If you have specific questions regarding your hardware combination, visit our contact page to verify compatibility with our engineering team.

Decision Matrix: Caliper Brand and Spacing

There's a common misconception that radial mounts are universal components. They aren't. A radial mount is a precision interface designed to align the caliper's pistons perfectly over the rotor's friction track. If the spacing is incorrect, you risk pad overhang, a dangerous condition where the brake pad extends past the edge of the rotor. This creates a lip that can eventually prevent the pistons from retracting properly. When selecting your hardware, match the 108mm arm to brands like Tokico, Nissin, or Sumitomo. This alignment is the first step in building a chassis that handles high-horsepower output without mechanical failure. Understanding these nuances is part of a broader commitment to excellence, which you can explore further in our High Performance Harley Parts guide.

Your caliper choice dictates your brake arm selection. It's that simple. By standardizing on the 108mm platform, we provide a robust foundation for the most popular performance upgrades on the market. This ensures that every time you pull the lever, the pressure is distributed evenly across the rotor. It eliminates the guesswork and provides a repeatable, professional-grade stopping experience. The PF Vector 108mm Radial Mount Brake Arm is designed to be the final word in rear-end braking stability for your Softail.

System Integration: Pairing with the Vector Billet Swing Arm

A performance-driven rear end is more than a collection of individual parts. It's an integrated system where every component must work in harmony to manage the massive torque loads of a modern V-Twin. While the PF Vector 108mm Radial Mount Brake Arm offers significant advantages on a factory setup, its full potential is realized when paired with the PF Vector Billet Swing Arm. This combination creates a unified, ultra-rigid assembly that effectively eliminates "chatter." This is the high-frequency vibration often felt during aggressive deceleration when components flex at different rates. By matching the mechanical properties of the brake mount with the structural integrity of a billet swingarm, you ensure that braking forces are absorbed through the chassis rather than causing mechanical distortion.

Chassis Integrity and Torque Management

Traditional swingarms are often the source of asymmetrical stress. When you apply the rear brake, the force is concentrated on one side of the axle, which can cause a stock swingarm to twist slightly. This microscopic torsion affects handling and can lead to unpredictable tracking during a hard stop. Our engineer-certified billet components are designed to resist these forces. By utilizing aerospace-grade aluminum across the entire rear assembly, we reduce unsprung weight while increasing lateral stiffness. This results in more responsive suspension action and a bike that tracks straighter under heavy load. High-horsepower applications demand this level of structural certainty to remain stable at speed.

Installation and Fitment Checklist

Precision components require precision installation. To maintain the integrity of the system, we recommend using high-quality titanium bolt kits for all mounting points. Titanium provides an exceptional strength-to-weight ratio and remains stable under extreme thermal cycling, ensuring your radial setup stays perfectly aligned. Before finalizing your installation, follow these critical steps:

• Verify the axle alignment is perfectly square to the chassis to prevent uneven pad wear.
• Ensure the caliper is centred over the rotor with no lateral drag on the pads.
• Use a calibrated torque wrench for all mounting hardware to prevent stress risers in the aluminum.
• Check for adequate clearance between the caliper body and the wheel spokes.

Achieving a cohesive, performance-driven rear end requires attention to detail at every stage of the build. If you need technical support or have questions about how these systems integrate with your specific 2018+ Softail build, reach out to our engineering team for expert guidance. We can help you verify fitment and ensure your build meets the high standards of Project Faster engineering.

The Project Faster Standard: Why Engineering Trumps Aesthetics

In a market often saturated with lifestyle branding and "aesthetic fluff," Project Faster Inc. remains focused on the physics of the ride. We don't build parts to follow trends; we build them to solve mechanical failures. The "No Shortcuts" philosophy is embedded in every stage of our design process. While other brands might prioritize a lifestyle image, we prioritize the structural integrity of your 2018+ Softail. Choosing the PF Vector 108mm Radial Mount Brake Arm isn't just about a visual upgrade. It's a deliberate transition from a standard build to a high-performance machine that handles torque with absolute stability.

Precision-Machined in Canada

Manufacturing locally allows for a level of engineering oversight that offshore cast imports cannot replicate. Every PF Vector 108mm Radial Mount Brake Arm is subjected to rigorous quality control standards in our Canadian facility. This ensures that the aerospace-grade aluminum meets our exact specifications for density and grain structure. We believe that functional superiority is the only metric that matters on the road. When you're decelerating from high speeds, you don't need a lifestyle statement; you need a component that refuses to flex. You can shop the full parts collection to find the engineering-certified hardware required to complete your performance-focused build.

The Final Verdict on Radial Performance

The 108mm Vector is the ultimate braking upgrade for riders who refuse to compromise on safety or control. By aligning the caliper parallel to the rotor and utilizing billet-strength rigidity, this arm transforms the rear-end dynamics of your Softail. It's a long-term investment in predictable stopping power and mechanical reliability. As horsepower figures rise, the demand on your chassis increases proportionally. Don't let your braking system become the bottleneck of your performance. For those interested in the deeper technical specifications of our design process, we recommend reading The Engineering of V-Twin Billet Components to understand how we maintain chassis integrity under extreme loads.

Project Faster exists for the rider who values the craft of machining and the results of precision engineering. We provide the hardware that allows you to push harder, stop faster, and ride with total confidence. Reliability is built into the grain of the metal, not just the finish on the surface. Your Softail deserves a braking system that matches its potential.

Solidify Your Softail's Stopping Power

Mechanical integrity is the foundation of every high-performance build. By transitioning from a factory axial mount to the PF Vector 108mm Radial Mount Brake Arm, you effectively eliminate the leverage weaknesses that cause caliper flex and inconsistent lever feel. We've engineered this component from aerospace-grade aluminum to provide a rigid interface that stays perfectly aligned under heavy load. Whether you're running a factory swingarm or the PF Vector Billet Swing Arm, this CNC-machined component ensures your braking system matches the output of your engine.

Precision engineering isn't just about the parts you see; it's about the physics you feel every time you pull the lever. Our Canadian-made hardware provides the predictable, controlled stopping power required for aggressive 2018+ Softail builds. It's time to stop settling for factory hardware and invest in a system designed for the limits of performance. Every stop should be as precise as the build itself.

Ready to transform your ride? Upgrade your braking performance with the PF Vector 108mm Radial Mount Brake Arm today. Your build deserves the uncompromising strength of Project Faster engineering.

Frequently Asked Questions

Will the PF Vector 108mm Radial Mount Brake Arm fit my stock 2018 Softail swingarm?

Yes, this brake arm is engineered for direct compatibility with factory 2018 and newer Softail swingarms. It also integrates seamlessly with our Vector Billet Swing Arm, providing a modular path for those who wish to upgrade their rear end in stages. This ensures you can achieve superior braking performance regardless of whether you are running a stock or aftermarket chassis setup.

What is the difference between 100mm and 108mm radial mount spacing?

The measurement refers to the centre-to-centre distance between the two mounting bolts on the caliper. A 100mm spacing is the European standard used primarily by brands like Brembo. The 108mm spacing is the Japanese and domestic standard utilized by Tokico, Nissin, and Sumitomo. You must match the PF Vector 108mm Radial Mount Brake Arm to a 108mm caliper to ensure the hardware aligns correctly with the rotor.

Can I use my factory brake caliper with this radial mount arm?

No, your factory axial caliper cannot be used with a radial mount arm. This component is specifically designed to facilitate an upgrade to high-performance radial calipers. To utilize this system, you will need to source a 108mm radial caliper, which offers the increased rigidity and pad surface area required for aggressive riding and high-horsepower applications.

Does the brake arm come with the necessary mounting hardware?

Yes, the brake arm includes the standard mounting hardware required for installation. For riders seeking the highest level of mechanical integrity and weight savings, we recommend pairing the arm with our titanium bolt kits. These kits provide superior thermal stability and strength, ensuring that the assembly remains secure even under the extreme heat generated during repeated hard stops.

Why is aerospace-grade aluminum better for a brake arm than standard billet?

Aerospace-grade aluminum offers a more consistent grain structure and higher tensile strength than standard commercial-grade billet. This is vital for a component like the PF Vector 108mm Radial Mount Brake Arm, which must resist microscopic twisting forces under load. Our choice of material ensures that the arm provides maximum rigidity without the risk of internal porosity or structural failure found in cast alternatives.

How does radial mounting improve the feel of my rear brake?

Radial mounting improves feel by securing the caliper at both ends with bolts parallel to the rotor, which distributes torque more evenly. This design eliminates the "lever effect" found in axial mounts that leads to caliper flex. By removing this flex, the spongy sensation at the lever is replaced with a firm, predictable response that gives the rider better modulation and control.

Are custom Cerakote colours available for the PF Vector brake arm?

Yes, the brake arm is available in Raw, Anodized, and Cerakote finishes. While we maintain a stock of standard performance colours, custom Cerakote options can be arranged to suit the specific colour palette of your build. These finishes aren't just for aesthetics; they provide a durable thermal barrier and protection against road salt and debris.

Do I need a professional mechanic to install the radial mount brake arm?

We strongly recommend that a professional mechanic performs the installation to ensure your safety and the system's performance. Precise caliper centring and rotor alignment are critical for effective braking and even pad wear. A professional will also ensure that all hardware is torqued to exact engineering specifications, preventing any mechanical issues during high-speed operation.
