How to Reduce Unsprung Weight on a Harley-Davidson: A Technical Engineering Guide

The most effective performance upgrade for your motorcycle isn't found in the engine cases, but at the ends of your suspension. Shaving mass from the frame is helpful, but unsprung weight is the primary mechanical barrier between a harsh ride and true cornering precision. When you reduce unsprung weight on a Harley, you decrease the rotational inertia and oscillation that force your tires to fight the road. This technical shift allows your suspension to react with the speed and accuracy required for high-performance riding.

You've likely felt the jarring feedback of a heavy rear wheel crashing over expansion joints or the sluggish turn-in of a Touring model. We recognize that these mechanical limitations compromise both safety and rider confidence. This guide promises to help you master the physics of unsprung mass to transform your bike's handling and suspension compliance. We will examine the engineering behind lightweight components, including billet aluminum swingarms and titanium hardware, to show you how to eliminate sluggish response and optimize your machine's power-to-weight efficiency.

What is Unsprung Weight and Why Does it Matter for Harleys?

Unsprung weight represents the mass of every component not supported by the motorcycle's springs. This includes the tires, wheels, brake calipers, rotors, and the swingarm. In the context of vehicle dynamics, Unsprung Weight is a critical variable that dictates how a chassis responds to road irregularities. When a wheel strikes a bump, it generates kinetic energy that the suspension must dissipate. A heavier assembly carries more energy, which forces the shock absorbers to work harder to maintain tire-to-road contact.

Engineering professionals often reference a 4:1 ratio when discussing mass reduction. This suggests that removing one kilogram of unsprung mass provides a performance benefit equivalent to removing four kilograms of sprung mass from the frame. Efforts to reduce unsprung weight Harley are therefore the most efficient way to enhance mechanical grip. By minimizing the weight at the ends of the suspension, you reduce the "inertia problem" where heavy parts continue moving upward even after the bump has passed, causing the tire to lose traction.

The Impact on Suspension Compliance

Heavy OEM wheels often cause "wheel hop," a phenomenon where the tire skips across ripples in the pavement rather than tracking them. This occurs because the mass of the wheel assembly overpowers the shock's ability to control its movement. Reducing this mass allows the suspension to react faster to high-speed damping events. The result is a significant improvement in ride quality and "compliance," as the wheel can move up and down with greater agility. This ensures the tire remains planted, providing consistent feedback through the handlebars and seat.

Rotational Mass vs. Static Unsprung Mass

It's vital to distinguish between static and rotational unsprung mass. The swingarm is static; it moves with the suspension but does not spin. Wheels and brake rotors are rotational. Reducing rotational mass offers a specialized advantage by lowering rotational inertia. A lighter wheel requires less energy to spin up or slow down, directly improving acceleration and braking distances. It also weakens the gyroscope effect. A heavy spinning wheel resists leaning; a lighter assembly makes the bike feel more "flickable" and responsive during rapid transitions in technical corners.

Why Harleys Struggle with High Unsprung Mass

Harley-Davidson motorcycles are legendary for their durability. This robustness comes with a significant engineering trade-off. To maintain structural integrity while keeping production costs manageable, the factory relies heavily on cast iron and stamped steel. These materials are undeniably strong. However, they lack the strength-to-weight ratio required for high-performance handling. When riders attempt to reduce unsprung weight Harley, they're fighting decades of mass-production philosophy that prioritizes ease of assembly over mechanical agility.

The stock swingarm on a Touring model is a prime example of this compromise. Constructed from heavy steel box-sections, these units contribute substantial mass to the rear of the chassis. Similarly, the standard brake rotors and calipers are designed for longevity under heavy loads, resulting in bulky components that increase rotational inertia. While these parts are reliable, their excessive weight creates a mechanical lag that hinders the suspension's ability to track the road surface accurately. High-output V-Twin engines generate immense torque at low RPM, exerting extreme lateral stress on the rear assembly. Harley uses thick steel sections to manage this force, but this adds dead weight that compromises the shock's damping efficiency.

The "Wallow" Effect in Cornering

A heavy rear end creates a distinct "wallow" during aggressive cornering. This sensation occurs because the high unsprung mass acts like a pendulum, resisting rapid changes in direction. As the rider initiates a turn, there's a perceptible delay between the handlebar input and the chassis response. This is further exacerbated by the inherent flex of OEM steel swingarms. Under load, the rear wheel can "fight" the suspension, leading to a loss of tracking precision and a sense of instability through the apex.

The Compromise of Mass Production

Factory engineering often defaults to "over-engineering" through sheer mass. It's more cost-effective to use a thick cast part than to invest in the precision machining required for a lightweight billet alternative. Transitioning from cast components to billet aluminum represents a fundamental shift in performance philosophy. Performance riders recognize that while OEM parts are durable, they're not optimized for those seeking elite-level handling. If you're ready to discuss specific engineering upgrades for your build, you can consult with our technical team to find the right balance for your chassis.

The Mako and Vector Solution: Engineering the Rear End

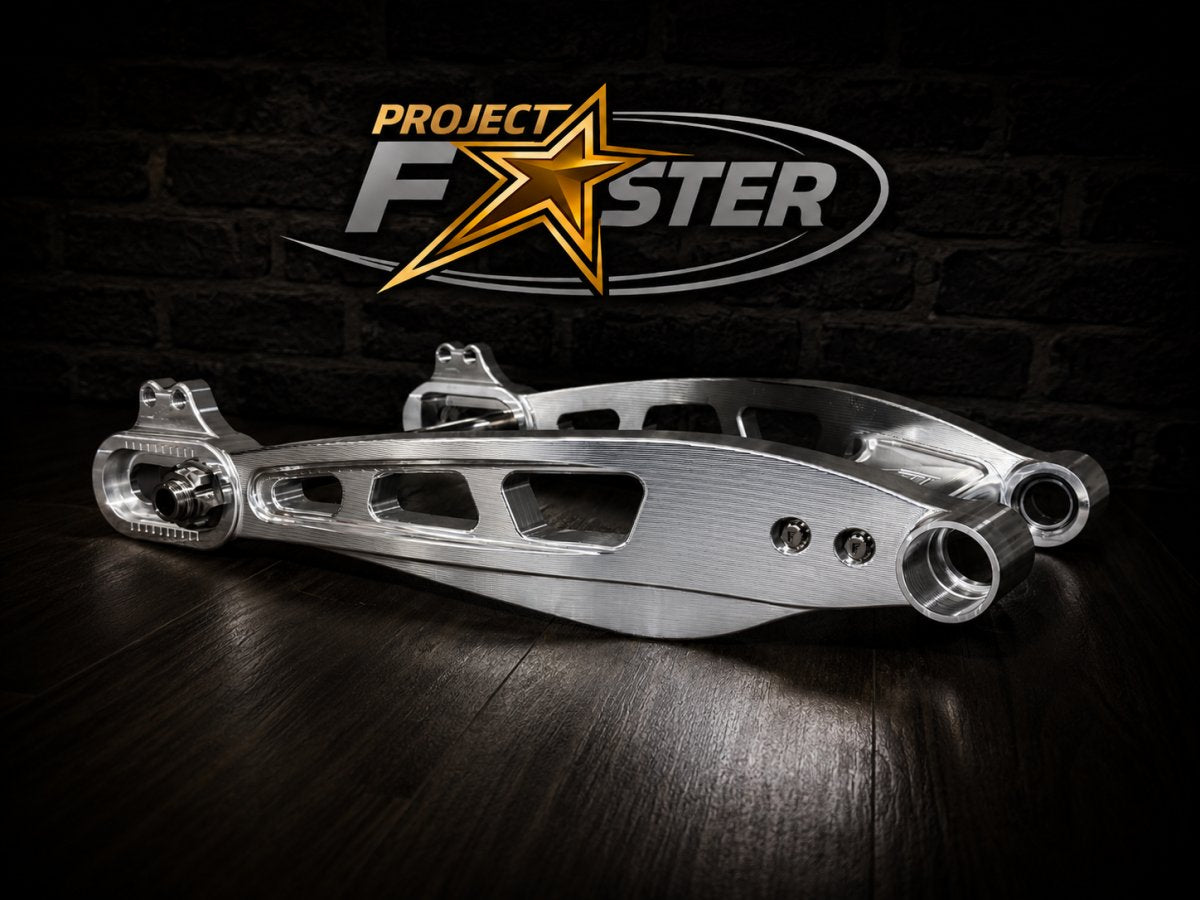

While many performance guides focus exclusively on wheel swaps, the swingarm remains a primary source of unnecessary mass on V-Twin chassis. Traditional steel swingarms are heavy and prone to flex under load. Replacing these with billet aluminum components is the most effective way to reduce unsprung weight Harley and stabilize the rear end. Our engineering team developed the Mako and Vector series to solve the specific mechanical weaknesses found in OEM Harley-Davidson rear assemblies. These components are designed for riders who prioritize mechanical integrity over factory compromises.

The Mako swing arm serves the Touring market, specifically 2009 and newer models. For the modern Softail platform, the Vector Billet Swing Arm - 2018+ Softail provides an identical leap in performance. Both products utilize aircraft-grade aluminum to replace the stamped and welded steel found on factory bikes. Billet construction allows for a "clean-sheet" design where material is only present where the physics of the load require it. This eliminates the dead weight of mass-produced steel boxes while significantly increasing the component's structural integrity. By removing several kilograms of static unsprung mass, these components allow the chassis to settle faster after a bump.

Rigidity Without the Weight Penalty

Achieving a high strength-to-weight ratio requires a superior material choice. We utilize 7075-T6 aluminum, which provides significantly higher yield strength than the mild steel used in stock swingarms. This material allows us to implement complex internal bracing within the PF Mako Billet Swing Arm, ensuring the component resists twisting forces under high torque. Unlike cast or welded steel, billet aluminum is machined from a solid block. This ensures grain structure consistency and eliminates the weak points often found in factory welds. This precision machining results in a part that is both lighter and substantially more rigid than the original equipment.

Improving Rear Wheel Tracking

A lighter swingarm assembly fundamentally changes how the rear shock interacts with the road. When you reduce the mass of the swingarm, the shock absorber can control the wheel's vertical movement with far greater precision. This improved tracking is vital during aggressive acceleration out of corners. If the rear wheel is too heavy, it tends to skip or "chatter" as the suspension struggles to push the mass back down. For riders running high-horsepower builds with the PF Liberator High-HP Exhaust, this extra traction is non-negotiable. Reducing unsprung inertia ensures that every ounce of torque is translated into forward motion rather than being wasted on wheel hop or chassis instability.

Materials Science: Titanium and Billet Aluminum

Selecting the correct alloys is the foundation of any effort to reduce unsprung weight Harley. While factory components rely on mass for strength, performance engineering utilizes materials with superior strength-to-weight ratios. Grade 5 Titanium and 7075-T6 aluminum are the primary materials that realize this objective. These alloys don't just reduce mass; they provide the fatigue resistance and structural rigidity necessary for high-stress applications like braking and power delivery.

The PF Vector 108mm Radial Mount Brake Arm is a testament to this philosophy. By utilizing billet aluminum, we can provide a stiffer mounting platform for high-performance calipers while simultaneously reducing the total mass of the brake assembly. This reduction in weight at the fork lower or swingarm mount directly translates to better suspension response. These materials also offer exceptional corrosion resistance, ensuring the components maintain their mechanical integrity and finish colour even after years of exposure to road grime and thermal cycling.

The Engineering Case for Titanium Fasteners

Fasteners are often overlooked in weight reduction strategies, yet they represent a significant portion of the mass at the wheel's centre. Titanium bolt kits provide a "strength-per-gram" advantage that stainless steel cannot match. By replacing steel rotor bolts, pulley bolts, and axle nuts with Grade 5 Titanium, you effectively strip mass from the most critical rotational points. This specific application is detailed further in The Engineering Guide to Titanium Bolt Kits for Motorcycles. Titanium is approximately 45% lighter than steel while maintaining comparable tensile strength, making it the ideal choice for securing high-load components without the weight penalty.

Billet Machining vs. Casting

Billet machining represents the pinnacle of precision weight distribution. Unlike casting, which involves pouring molten metal into a mould and often results in internal porosity or uneven wall thickness, billet parts are carved from a solid, forged block. This process allows engineers to remove "dead weight" from non-structural areas with surgical precision. Billet aluminum allows for the removal of every gram of material that does not contribute to structural integrity. This level of control ensures that the mass is concentrated only where the physics of the load demand it, resulting in a component that is lighter, stronger, and more aesthetically refined than any cast equivalent.

If you are looking to optimize your chassis with these advanced materials, contact our engineering department to discuss your specific performance goals.

Practical Steps to Reduce Your Harley’s Unsprung Weight

Systematically upgrading your chassis requires a logical progression based on engineering priorities. While a total overhaul is the ultimate goal, most riders find success by following a staged approach. This allows you to feel the incremental improvements in handling and suspension compliance as you strip away unnecessary mass. To reduce unsprung weight Harley owners should look at the motorcycle as a collection of subsystems, starting with the smallest fasteners and moving toward the largest structural components.

• Stage 1: Hardware and Fasteners – Begin by replacing heavy steel rotor and pulley bolts with Grade 5 Titanium bolt kits. This is the most cost-effective way to strip rotational mass from the centre of the wheel.
• Stage 2: Braking System – Upgrade to the PF Vector 108mm Radial Mount Brake Arm and lighter high-performance calipers. This reduces the weight hanging off the fork lowers or swingarm while improving stopping precision.
• Stage 3: The Rear End – Replace the OEM steel swingarm with a Mako or Vector billet aluminum unit. This is the single most impactful structural change you can make to the rear suspension.
• Stage 4: Rotational Mass – Conclude the build by investing in forged aluminum or carbon fibre wheels. This final step minimizes rotational inertia, providing the fastest possible turn-in and acceleration.

Prioritizing Your Upgrades

The rear swingarm represents the most significant "single-piece" weight saving available for a Harley-Davidson. Because the stock unit is a massive steel assembly, transitioning to a billet aluminum Mako or Vector arm provides an immediate reduction in rear-end wallow. Your specific riding style should dictate your priority list. A Touring rider might focus on Stage 3 first to improve long-distance comfort and stability, while a Performance Bagger enthusiast might prioritize Stage 2 and 4 for aggressive cornering. If you are unsure which stage fits your current build, contact Project Faster for technical fitment advice.

The Final Result: A Transformed Ride

The cumulative effect of these modifications is a total transformation of the motorcycle's character. When you reduce the mass the suspension must control, you realize a level of "compliance" that factory parts simply cannot provide. The shocks react faster, the tires track the ground with greater precision, and the bike feels significantly lighter than its physical weight suggests. This synergy between reduced mass and high-performance suspension tuning creates a machine that is predictable at the limit. To begin optimizing your chassis, Shop all high-performance parts and experience the difference that engineering-first components make on the road.

Optimize Your Chassis for Elite Performance

Reducing the physical mass of your suspension components is not just about weight savings; it's about reclaiming mechanical control over your machine. By choosing to reduce unsprung weight Harley riders can bypass the limitations of heavy factory casting and stamped steel. We've established that high-performance materials like 7075-T6 Billet Aluminum provide the rigidity required for high-torque V-Twins without the massive weight penalty of OEM parts. This technical shift ensures your suspension reacts with the speed necessary for true tracking precision.

Our engineer-certified designs are meticulously crafted to ensure that every gram of material serves a structural purpose. This commitment to Made in Canada quality ensures that your build is supported by components that prioritize functional excellence over mass-market compromises. Whether you're addressing rear-end wallow on a Tourer or seeking faster turn-in on a Softail, the solution lies in the precision of the materials and the integrity of the design. Your pursuit of a faster, more responsive ride starts with superior engineering.

Ready to transform your bike's handling? Upgrade your Harley with Engineer-Certified Billet Swing Arms and consult with our technical team today to finalize your performance build.

Frequently Asked Questions

Is reducing unsprung weight safe for high-horsepower Harleys?

Reducing unsprung mass is entirely safe provided you utilize components engineered specifically for high-torque applications. Quality billet aluminum parts, such as the Mako or Vector swingarms, are designed to handle the extreme lateral stress generated by high-horsepower builds. These parts often exceed the yield strength of the mild steel used in factory components. It's essential to use engineer-certified parts that maintain structural integrity while shedding dead weight from the chassis.

How much weight can I actually save by switching to a billet swingarm?

You can typically save approximately 7 lbs by replacing a stock Touring swingarm with a high-performance billet alternative. This reduction is significant because it represents a major percentage of the static unsprung mass. Removing this weight allows the rear shock to settle faster after hitting a bump. It stabilizes the rear end during aggressive acceleration by minimizing the kinetic energy the suspension must control during rapid movement.

Will I need to retune my suspension after reducing unsprung mass?

You will likely need to adjust your damping settings to account for the faster suspension response. When you reduce unsprung weight Harley suspension components don't have to work as hard to push the tire back into the pavement. You may find that you can run less rebound damping because there is less mass trying to pull the shock open after a compression event. This results in a more compliant and controlled ride.

Does titanium hardware require special maintenance or anti-seize?

Grade 5 Titanium fasteners require the use of a high-quality anti-seize lubricant to prevent galling during installation. This is critical for components like axle nuts and rotor bolts where high torque loads and heat cycles are common. While titanium is highly resistant to corrosion, the interface between different metals can lead to seizing if not properly lubricated. Regular torque checks are also recommended to ensure long-term mechanical security.

What is the most cost-effective way to start reducing unsprung weight?

Upgrading to titanium bolt kits for your rotors and pulleys is the most accessible entry point for weight reduction. These fasteners are relatively inexpensive compared to wheels or swingarms but offer an immediate reduction in rotational mass. Removing weight from the centre of the wheel assembly provides a perceptible improvement in braking and acceleration efficiency. It's a precise way to begin optimizing your motorcycle's performance without a major structural overhaul.

Can I feel a 2kg reduction in unsprung weight while riding?

A 2kg reduction in unsprung mass is very perceptible through the handlebars and seat. Because of the 4:1 ratio often cited by engineers, this reduction feels like removing 8kg from the frame. You'll notice that the bike feels more responsive in corners and the suspension feels less harsh over small, high-frequency bumps. The motorcycle becomes more agile and maintains better tire contact during rapid transitions.

Are billet aluminum swingarms as strong as the original steel ones?

Billet aluminum swingarms are often stronger and more rigid than the original stamped steel units. By using 7075-T6 aluminum, engineers can create a part with a higher strength-to-weight ratio than mild steel. Billet construction eliminates the potential for internal porosity or weak welds found in mass-produced parts. This ensures the component can withstand the extreme lateral forces generated by high-torque V-Twin engines without the risk of flexing.

How does unsprung weight affect tire wear on a heavy motorcycle?

High unsprung weight increases tire wear by causing the tire to skip or scuff over road imperfections. When you reduce unsprung weight Harley tires can track the road surface more consistently. This reduces the micro-slippage that occurs when a heavy wheel assembly loses contact with the pavement. Better suspension tracking leads to more even heat distribution and longer tire life, especially on heavy Touring models subjected to aggressive riding.
