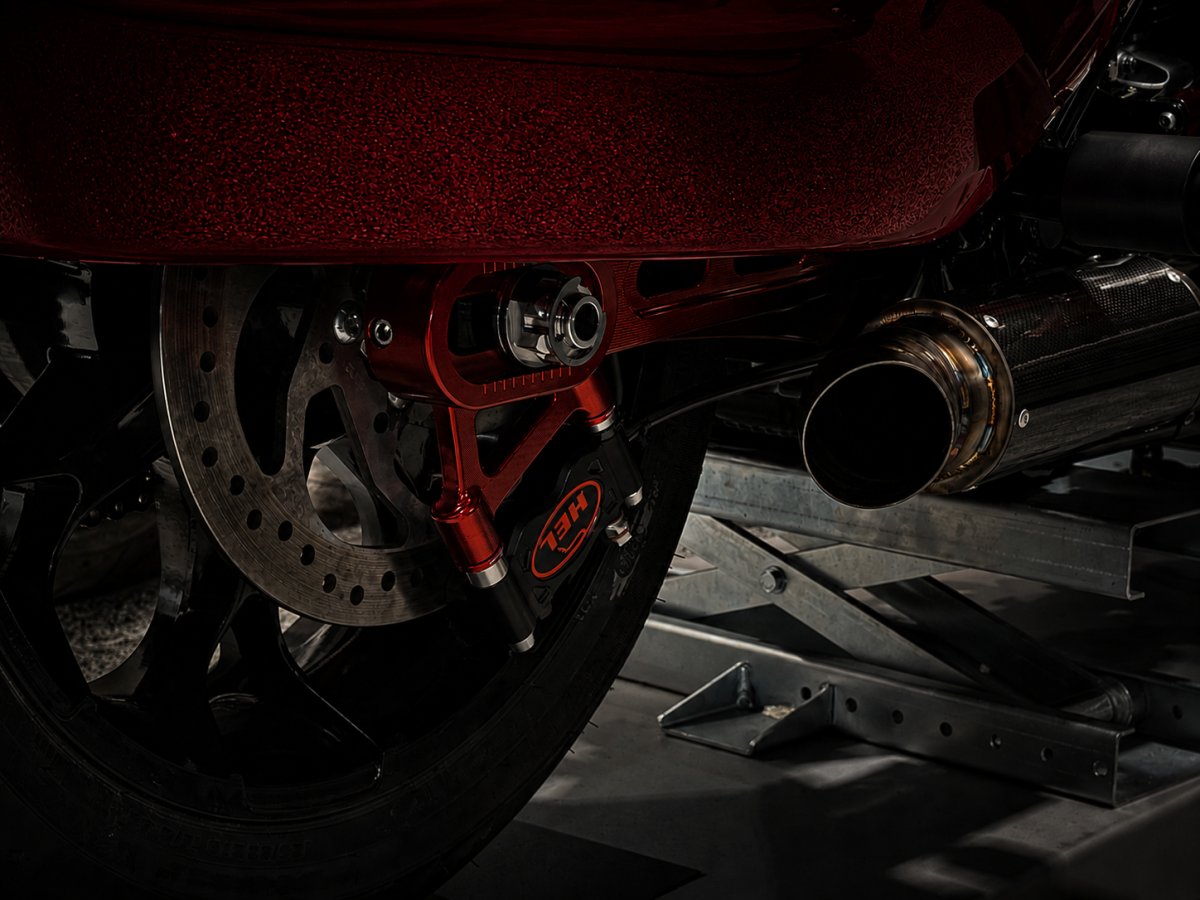

Engineering the Perfect Stop: Softail Brake Arm Upgrades

Your factory cast brake arm is the weakest link in your Softail’s deceleration chain. You have likely felt that unsettling sponginess during a hard stop or winced as the low-hanging factory component scraped the pavement during an aggressive corner. It is a frustrating reality for riders who prioritize mechanical integrity and real-world results over mass-market compromises. Investing in a precision billet brake arm Softail owners can trust is the first step toward reclaiming hydraulic efficiency and maximizing your ground clearance.

In this guide, you will discover how to eliminate mechanical flex and optimize your lean angle using precision-engineered 6061 or 7075 aluminum components. We will examine the technical advantages of CNC-machined parts and provide a professional overview of the installation process. By the end, you will understand how to transform your braking system into a rigid, high-calibre assembly that delivers the exactness your riding demands. Our focus remains on the physics of performance, ensuring every stop is as controlled and predictable as the engineering behind it.

Understanding the Billet Advantage for Softail Braking Systems

Structural rigidity is the foundation of performance. While factory components are designed for cost-effective mass production, professional-grade parts are built for the physics of the road. A billet brake arm Softail upgrade replaces the standard cast lever with a component machined from a single, solid block of high-grade aluminum. This process isn't just about creating a cleaner look; it's about preserving the metal's internal grain structure to ensure the highest possible density and resistance to deformation. Billet isn't a buzzword. It represents a fundamental shift in how we approach the engineering of a motorcycle's control centre.

When you apply pressure to your rear brake, you're initiating a complex sequence of disc brake mechanics. In a perfect system, 100% of your foot's energy transfers through the linkage to the master cylinder. Factory cast arms often fail this test. Because cast metal is porous and can contain microscopic air pockets, it lacks the tensile strength of billet. Under heavy braking loads, a cast arm can flex laterally. This deflection absorbs energy that should be moving fluid, resulting in a vague, disconnected sensation at the pedal. By eliminating this mechanical "give," you gain superior tactile feedback, allowing for precise modulation during high-stress stops.

Metallurgy Matters: 6061 vs. 7075 Aluminum

Not all aluminum is created equal. Most high-performance components utilize 6061-T6 for its excellent balance of strength and corrosion resistance. However, for parts subjected to extreme stress, 7075 aluminum is often the superior choice. This alloy features a higher zinc content, providing a strength-to-weight ratio that rivals many steel alloys. Selecting the right material is a critical part of the engineering of V-Twin billet components. By using these aerospace-grade materials, we ensure the brake arm remains rigid even when subjected to the heat and vibration of aggressive long-distance riding.

The Problem with Factory Cast Arms

Manufacturers use casting because it's fast and inexpensive. Molten metal is poured into a mould, which often leads to inconsistent wall thicknesses and internal structural weaknesses. You'll quickly realize that these manufacturing shortcuts eventually manifest as a "spongy" feel that even the best brake bleeding won't fix. Over years of heat cycles and environmental exposure, cast parts can become brittle or develop stress fractures. A billet brake arm Softail riders choose avoids these pitfalls entirely. The CNC machining process ensures every dimension is exact, removing the variability found in poured metal and providing a high-calibre, reliable response every time you reach for the pedal.

Evaluating Performance: Lean Angle and Rigidity

Performance on a modern V-Twin is a calculation of geometry and material strength. When you lean into a corner, every millimetre of ground clearance matters. A standard cast arm is often bulky and protrudes further than necessary, creating a physical limit on your lean angle. By switching to a billet brake arm Softail owners can tuck the component significantly closer to the chassis. This refined profile allows for more aggressive cornering without the immediate risk of hard-part contact. It is a modification that prioritizes the physics of the ride over the convenience of mass manufacturing.

High-performance riding often pushes parts to their structural limits. To address this, elite-level arms frequently incorporate a replaceable "scrape plate" into the design. This sacrificial component protects the structural integrity of the arm during extreme lean angles. It is a hallmark of motorcycle engineering and performance upgrades where function dictates the form. This ensures that even if you find the limit of your clearance, the primary braking component remains undamaged and fully functional.

Beyond clearance, the pivot point must be absolute. Any lateral play in the pivot pin translates to lost motion and inconsistent pedal feel. A precision-machined pivot ensures that the arc of travel is consistent and repeatable. This consistency is vital for maintaining steady master cylinder pressure. If the arm length is optimized, it provides the ideal mechanical advantage, ensuring your foot input is amplified correctly rather than being wasted on component flex. If you have questions about specific fitment for your chassis, you can reach out to our technical team for guidance.

Maximizing Lean Angle on M8 Softails

The M8 Softail chassis rewards riders who push into deep corners. Stock arms are designed for the average user, not the performance enthusiast. A billet arm typically features a slimmer cross-section and a more ergonomic curvature. This tucked-in geometry prevents the "jack-up" effect that occurs when a fixed part hits the asphalt. For those carving canyons or testing limits on a closed course, this extra clearance is the difference between a smooth exit and a dangerous upset. You gain the ability to hold a tighter line without sacrificing safety.

Rigidity and Hydraulic Efficiency

Efficiency is the ratio of input to output. In the "mechanical chain" of braking, a rigid arm is the primary transmitter of force. Any deflection in the arm means the piston in the master cylinder receives less than 100% of the intended pressure. For a deeper dive into these technical requirements, read the PF Vector 108mm Radial Mount Brake Arm guide. It details how rigidity directly correlates to stopping distances and hydraulic stability. When the arm doesn't bend, the brake pads respond with immediate, linear pressure.

Selecting the Correct Brake Arm for Your Configuration

Selecting a performance component requires more than just checking a compatibility list. It's about engineering a precise interface between the rider and the machine. If the geometry is off by even a few millimetres, the mechanical advantage is compromised. When you choose a billet brake arm Softail owners must account for their specific control layout and foot position. A mismatch here doesn't just look wrong; it degrades the hydraulic response you're trying to improve.

Compatibility extends beyond the frame. You must consider your choice of floorboards or pegs. High-performance floorboards often have different thicknesses or mounting offsets compared to stock units. A precision-engineered arm should offer an adjustable clevis point. This feature allows you to fine-tune the pedal height and reach, ensuring your foot rests in a neutral position while remaining ready for immediate engagement. It's this level of ergonomic customization that separates elite components from generic replacements.

The relationship between the arm and the master cylinder bore is equally critical. The leverage ratio is a fixed physical property of the arm's length and pivot location. If the arm is too short, you'll need excessive foot pressure to achieve the desired stopping power. If it's too long, the pedal travel becomes excessive. You're looking for a balance that provides a firm, linear feel throughout the entire braking arc. This ensures the hydraulic system operates within its designed pressure range without over-stressing the seals or the linkage.

Mid-Controls vs. Forward-Controls

Pivot locations differ significantly between these two setups. Mid-controls require a compact, high-clearance design that doesn't interfere with the primary cover or the rider's boot during shifts in body weight. Forward-controls demand a longer reach and a different leverage curve to accommodate the extended leg position. A "one-size-fits-all" billet brake arm Softail component is an engineering compromise that fails the performance rider. Before purchasing, evaluate your setup using this technical checklist:

• Measure the distance from the pivot pin to the centre of the pedal.
• Check the clearance between the arm and the exhaust heat shields.
• Confirm the clevis pin diameter matches your master cylinder linkage.
• Verify the arm's offset provides enough room for your specific floorboard mounts.

Aesthetic and Functional Finishes

Surface treatment is about more than just visual appeal. While powder coating is common, hard-coat anodizing is the superior choice for high-wear areas like a brake pedal. Anodizing creates an electrochemical bond with the aluminum, making it significantly more resistant to the abrasive grit kicked up from the road. For those who prefer a raw, technical look, machined billet provides a striking industrial aesthetic that showcases the tool paths of the CNC process. You can shop all performance parts to find the finish that best integrates with your chassis's existing colour palette and texture.

How to Install a Billet Brake Arm: A Technical Walkthrough

Installation is where engineering meets the pavement. A high-performance component only functions as intended when installed with technical precision. Before beginning, organize a clean workspace and gather the necessary tools: a set of high-quality Allen keys or sockets, needle-nose pliers, and a premium waterproof grease. Professional results require a methodical approach to the 2018+ M8 Softail platform. This chassis utilizes a specific pivot pin and linkage system that must be handled with care to maintain the integrity of the rear braking circuit.

Begin by securing the motorcycle on a lift or stand to ensure stability. Locate the cotter key or snap ring on the inboard side of the pivot pin near the centre of the frame. Using your pliers, carefully remove the retaining hardware. Slide the pivot pin out to release the factory cast arm. This is a critical moment to inspect the pivot shaft for road grime or corrosion. Clean the shaft thoroughly with a lint-free cloth and apply a thin, even layer of lubricant. This step ensures that your new billet brake arm Softail rotates without friction or binding, preserving the tactile feedback required for performance riding.

If you encounter technical resistance during the process or require specific torque values for your chassis, contact our engineering department for direct assistance.

Step-by-Step Mechanical Procedure

Accessing the brake linkage on a modern Softail often requires working in tight tolerances near the exhaust. Disconnect the clevis pin that joins the arm to the master cylinder plunger. Be extremely careful not to pull or twist the plunger. Damaging the internal hydraulic seals can cause future leaks and a loss of pressure. Once the linkage is free, align the new billet arm with the pivot shaft. Reinsert the pivot pin and secure it with a fresh cotter key or snap ring. Never reuse old retaining hardware. Metal fatigue can lead to component failure under the constant vibration of a V-Twin engine.

Final Adjustments and Safety Checks

Once the arm is mounted, you must set the pedal height for optimal ergonomic reach. Adjust the threaded linkage on the master cylinder to position the pedal where your foot naturally rests. This ensures immediate engagement without requiring excessive ankle movement. Test the return spring tension to confirm the arm snaps back to its neutral position instantly. Finally, verify the brake light switch activation. On many 2018+ models, the switch is triggered by the arm's movement; ensure the light illuminates before the pads begin to bite. Check for clearance against the exhaust heat shields to prevent heat transfer or rattling during operation.

Optimizing Your Chassis: Integrating Billet Components

Performance is a holistic metric. You cannot achieve elite-level handling by upgrading a single lever in isolation. A billet brake arm Softail riders install is a critical piece of a much larger mechanical puzzle. When every component in the chassis is engineered to the same high-calibre standard, the motorcycle behaves as a unified entity rather than a collection of parts. This systemic approach ensures that the rigidity gained at the pedal isn't lost through a flexing frame or a compromised rear suspension mount. It's about creating a machine that responds to inputs with absolute predictability.

Every gram matters when you're managing the physics of a moving chassis. Reducing unsprung weight, the mass not supported by the suspension, directly improves the reactivity of your tires to the road surface. While the brake arm itself provides structural rigidity, the hardware used to secure it and the surrounding components play a vital role. Utilizing high-strength fasteners allows for maximum clamping force with minimal weight, ensuring that the entire assembly remains stable under extreme vibration and heat. This meticulous attention to detail is what defines a performance-first build at Project Faster Inc.

The Brake Arm and Swing Arm Synergy

Rear-end stability is the silent partner of braking performance. If your swing arm flexes during a hard stop, it alters the geometry of the rear wheel, causing the bike to track inconsistently. Integrating a billet brake arm Softail with a PF Vector Billet Swing Arm creates a rigid platform that eliminates these unpredictable movements. This synergy reduces harmonic resonance and ensures that the energy from your braking input is used solely to slow the machine, not to fight chassis distortion. You gain a level of control that factory cast parts simply cannot provide.

Completing the Performance Build

A truly fast motorcycle is one that can carry momentum through a corner and shed speed with absolute precision. High-performance isn't merely a measurement of engine output; it's a balance of acceleration, deceleration, and chassis integrity. To further refine this balance, consult the engineering guide to titanium bolt kits for motorcycles to understand how aerospace materials optimize your build. If you're ready to transition from aesthetic modifications to engineer-certified performance upgrades, contact Project Faster Inc. for technical guidance on your specific Softail configuration. We prioritize the mechanical reality of the ride, ensuring your machine is built to perform under pressure.

Mastering the Physics of Deceleration

Upgrading your braking system is a fundamental shift from mass-market compromise to precision engineering. By replacing porous cast components with a high-calibre billet brake arm Softail riders eliminate the mechanical flex that compromises hydraulic efficiency. You now understand how optimized geometry increases your lean angle and how a rigid linkage ensures every ounce of foot pressure translates into stopping power. These aren't just aesthetic choices; they are calculated improvements to your motorcycle's chassis integrity.

Project Faster Inc. components are engineer-certified for maximum rigidity and designed specifically for 2018+ Softail performance. Every part is precision CNC-machined in North America to ensure a perfect fit and uncompromising durability. When you prioritize the physics of the ride, you gain a machine that responds with absolute certainty. It's time to move beyond factory limitations and experience the difference that professional-grade engineering makes on the road.

Upgrade Your Stopping Power with Project Faster Inc. Billet Components

Frequently Asked Questions

Can I install a billet brake arm on my Softail with stock floorboards?

Yes, professional-grade billet arms are designed to integrate seamlessly with factory floorboard configurations. Billet arms often feature a slimmer profile than bulky cast units, which actually improves clearance around stock mounts. You must verify the specific offset of the arm to ensure there is no binding or interference during the full range of pedal travel. This ensures your foot remains in a natural position while providing immediate access to the brake.

How much more lean angle can I expect from a performance brake arm?

You can expect a noticeable increase in ground clearance because the billet arm is tucked significantly closer to the chassis than the stock part. While the exact degree of improvement depends on your suspension height and tire profile, the slim cross-section prevents the arm from being the first point of contact. This allows you to hold a tighter line in corners without the risk of the hardware scraping the pavement.

Is a billet brake arm compatible with the ABS system on my Harley?

Yes, a billet brake arm is fully compatible with ABS-equipped Softails. The arm acts as a mechanical linkage that operates the master cylinder; it doesn't interfere with the hydraulic ABS sensors or the electronic control module. As long as the leverage ratio remains consistent with factory specifications, your ABS will function exactly as intended during emergency stops or high-stress braking scenarios.

Does the billet arm come with a new brake pedal or shifter peg?

Most high-performance arms are sold as a standalone lever, allowing you to choose a pedal that matches your specific ergonomic and aesthetic preferences. However, some precision-engineered units like the PF Vector series are designed as a complete assembly for maximum rigidity. You should always check the product specifications to confirm if a peg or pedal is included in the kit before you begin your build.

What is the difference between 6061 and 7075 aluminum for brake arms?

6061 aluminum is the industry standard for its excellent balance of strength and corrosion resistance. 7075 aluminum is a higher-grade aerospace alloy with nearly double the tensile strength, making it the ideal choice for high-stress chassis components. Choosing a billet brake arm Softail riders trust often involves selecting 7075 to ensure the absolute elimination of lever flex during aggressive riding or heavy braking.

How do I adjust the pedal height on my new billet brake arm?

You adjust the pedal height by rotating the threaded clevis on the master cylinder plunger, which changes the physical resting position of the arm. Once you've achieved the optimal ergonomic height for your foot, you must secure the jam nut to prevent vibration from backing out the adjustment. This ensures a consistent and repeatable reach every time you need to engage the rear brake.

Do I need to bleed my brakes after installing a new brake arm?

No, you don't need to bleed the system because you aren't opening any hydraulic lines during the installation. The process involves only the mechanical pivot pin and the linkage to the master cylinder plunger. It's still a professional practice to inspect your fluid levels and check for any existing leaks while the motorcycle is on the lift, but the hydraulic circuit remains sealed throughout the swap.

Is there a weight difference between the stock arm and a billet version?

Yes, there's a measurable weight reduction when switching from a heavy cast iron or poured aluminum part to a billet brake arm Softail upgrade. CNC-machining allows engineers to remove excess material from low-stress areas without compromising the structural integrity of the component. Reducing this mass helps lower the overall weight of the motorcycle and contributes to a more responsive, high-performance chassis feel.
