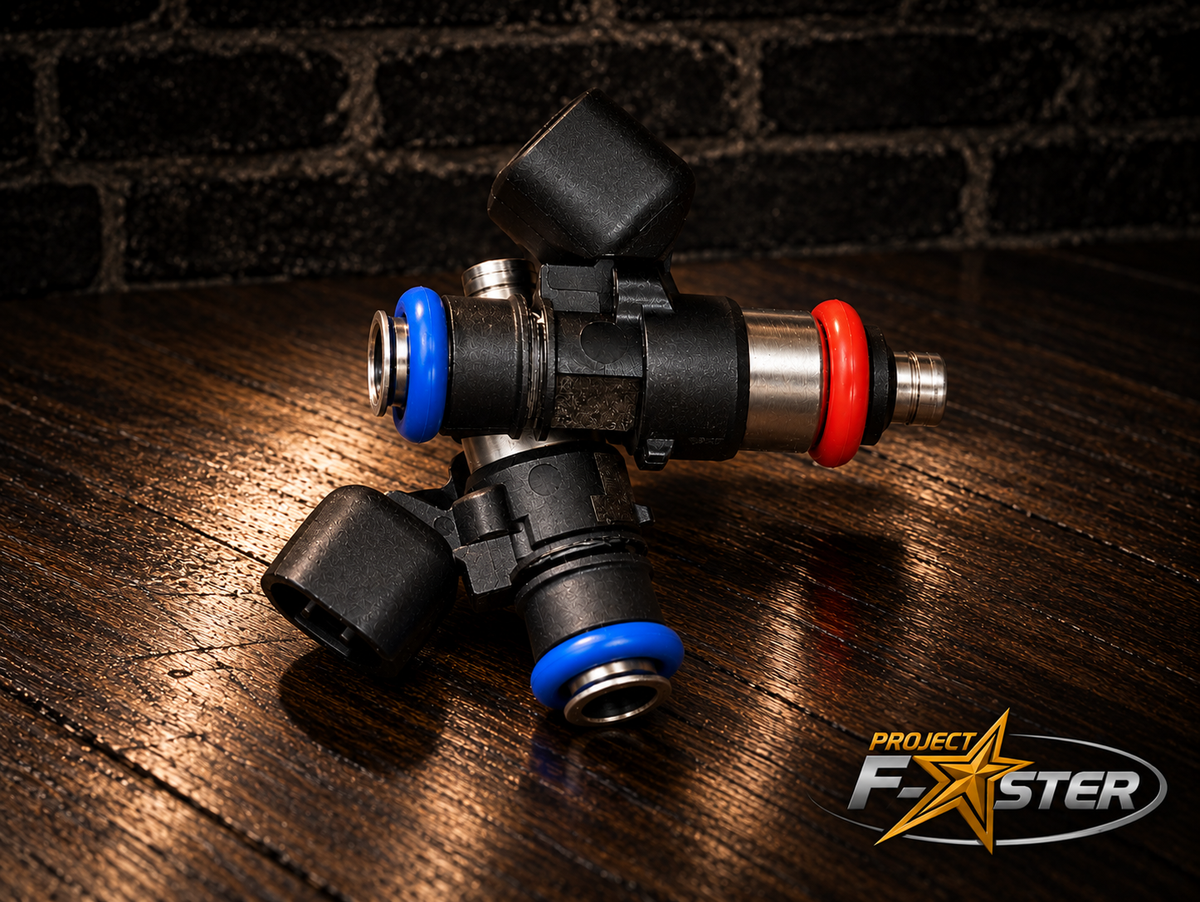

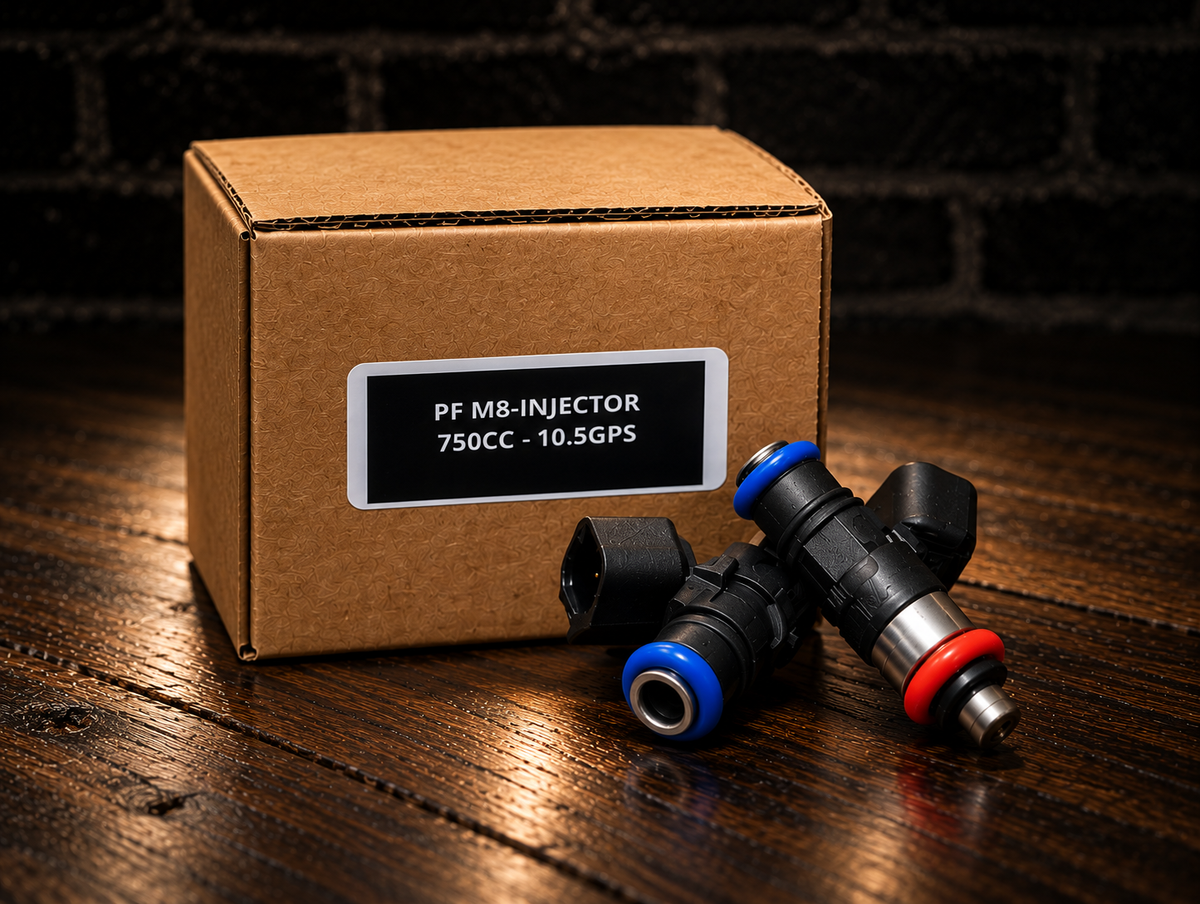

PF M8 Fuel Injectors

Precision flow. Fast response. Built for big horsepower.

Serious horsepower needs fuel delivery that keeps up. PF high-performance injectors are built for high-output Gen 1 and Gen 2 Milwaukee-Eight engines, from aggressive naturally aspirated builds to turbocharged and supercharged applications. Each set is flow-balanced and matched within 1% variance, so every cylinder gets the same fuel.

What You Get:

• Individual flow-data report with each matched pair
• Static and dynamic flow data at 3.0, 3.5, and 4.0 BAR, plus flow characterization at 15%, 50%, and 100%
• Injector dead-time (latency) data for accurate fuel calibration

• Superior atomization for better combustion and throttle response
• Consistent low-pulse-width performance for smooth idle and low-RPM running
• Plug-and-play US-CAR connection, no wiring modifications on compatible applications

Fitment:

• Harley-Davidson Milwaukee-Eight (M8), Gen 1 and Gen 2
• Big-bore 131", 139", 143" and larger engines
• Naturally aspirated, high-compression, turbocharged, and supercharged builds

Available Flow Rates:

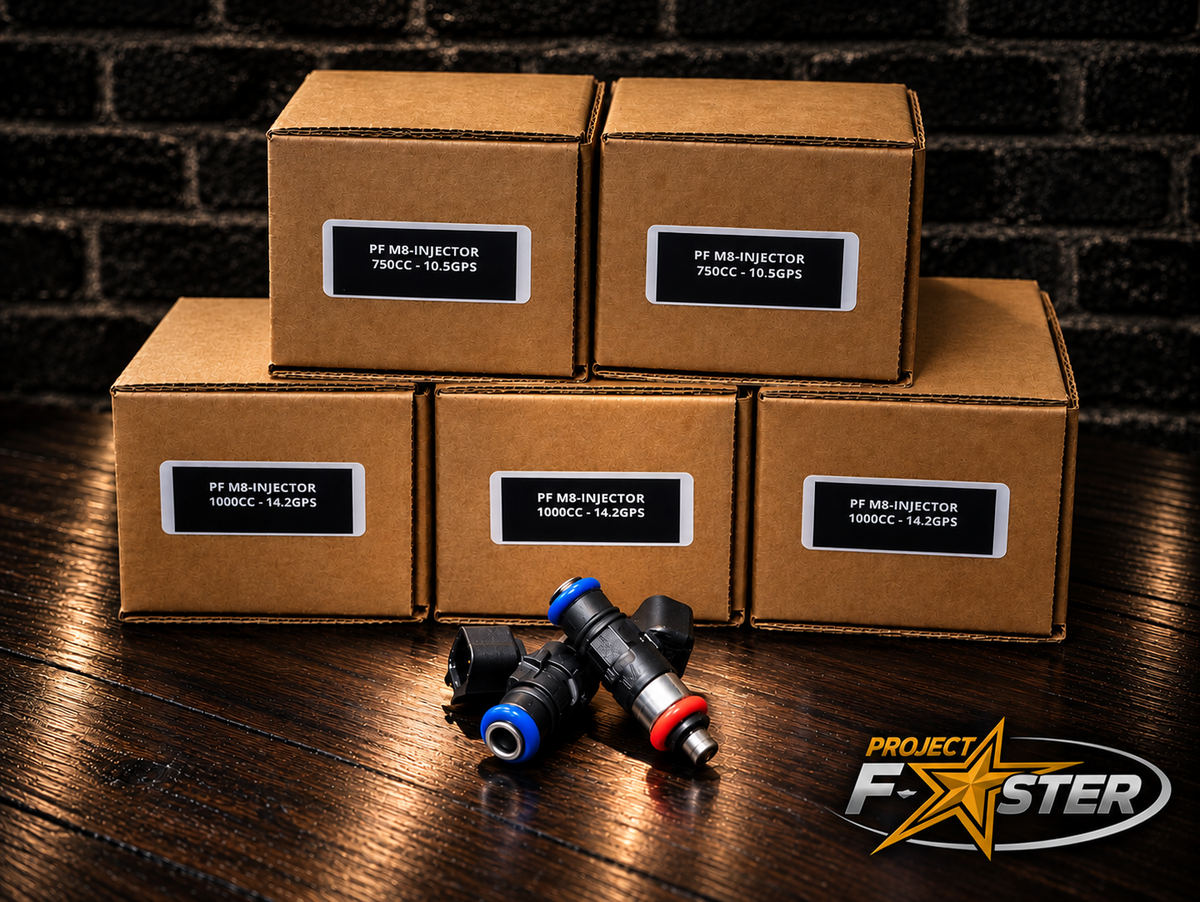

• 750cc (10.5 GPS): in stock

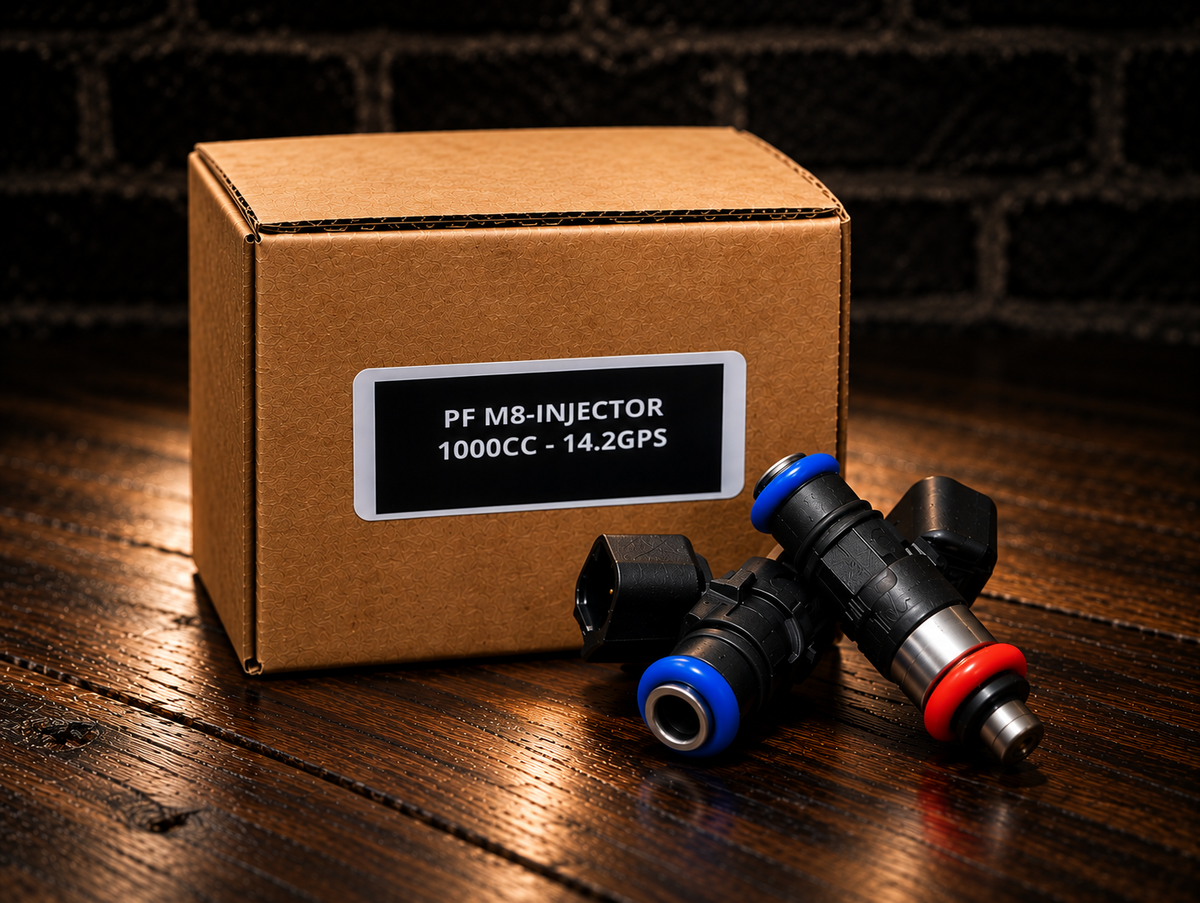

• 1000cc (14.2 GPS): in stock

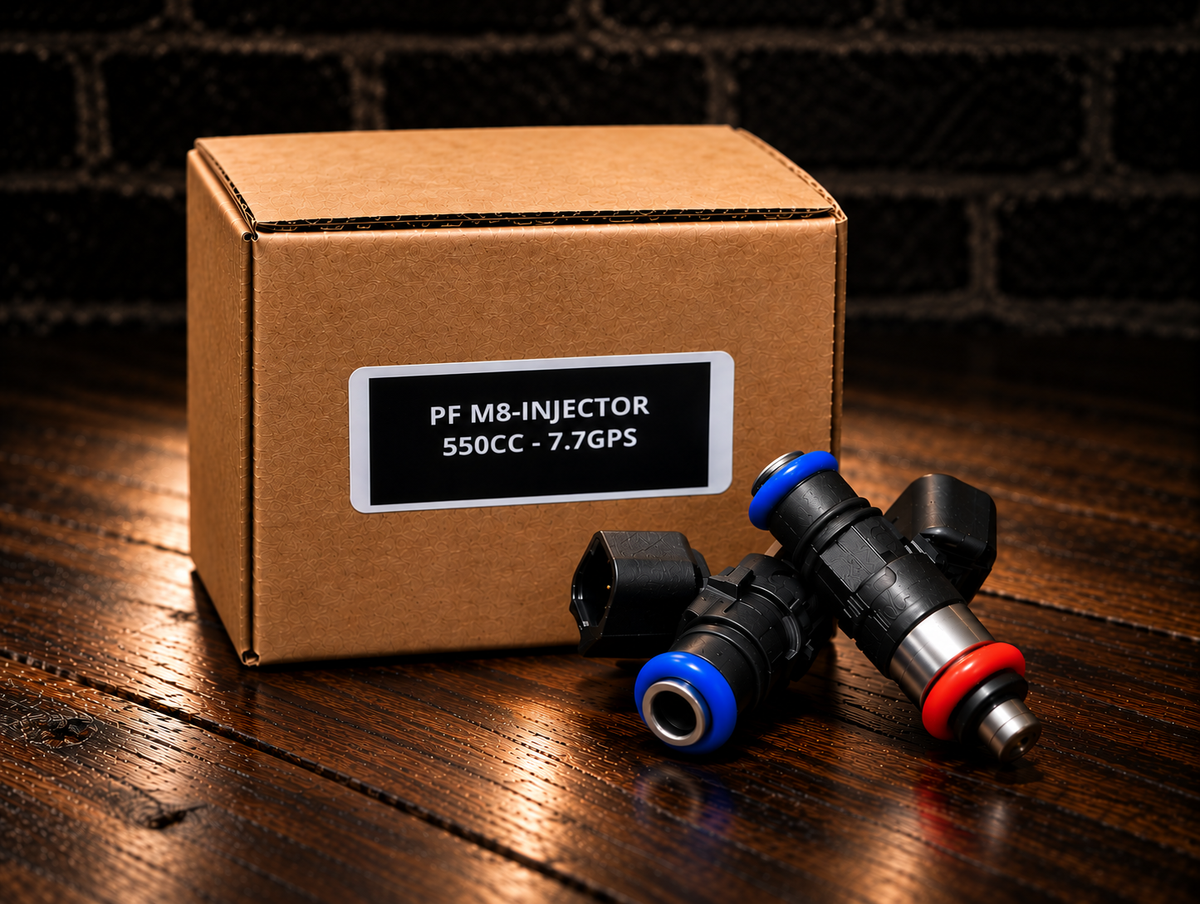

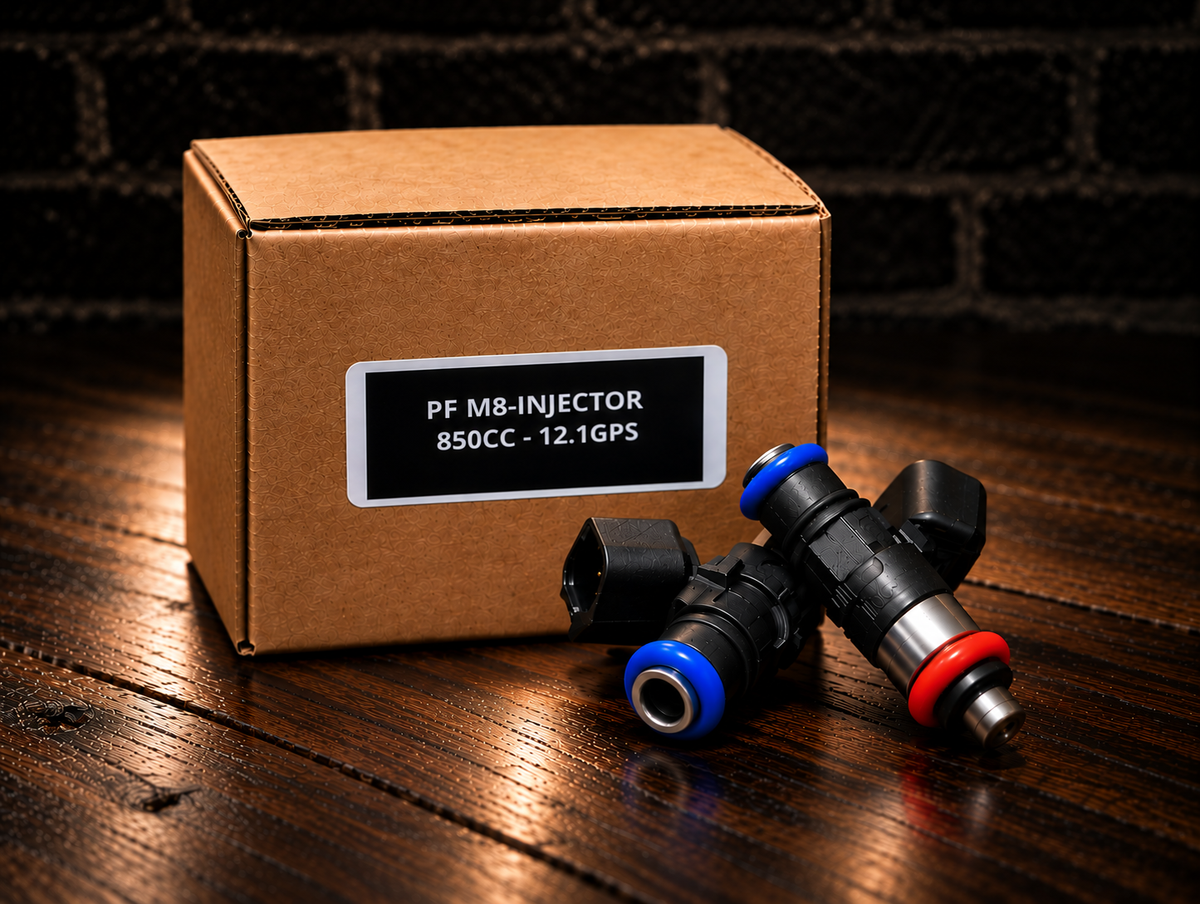

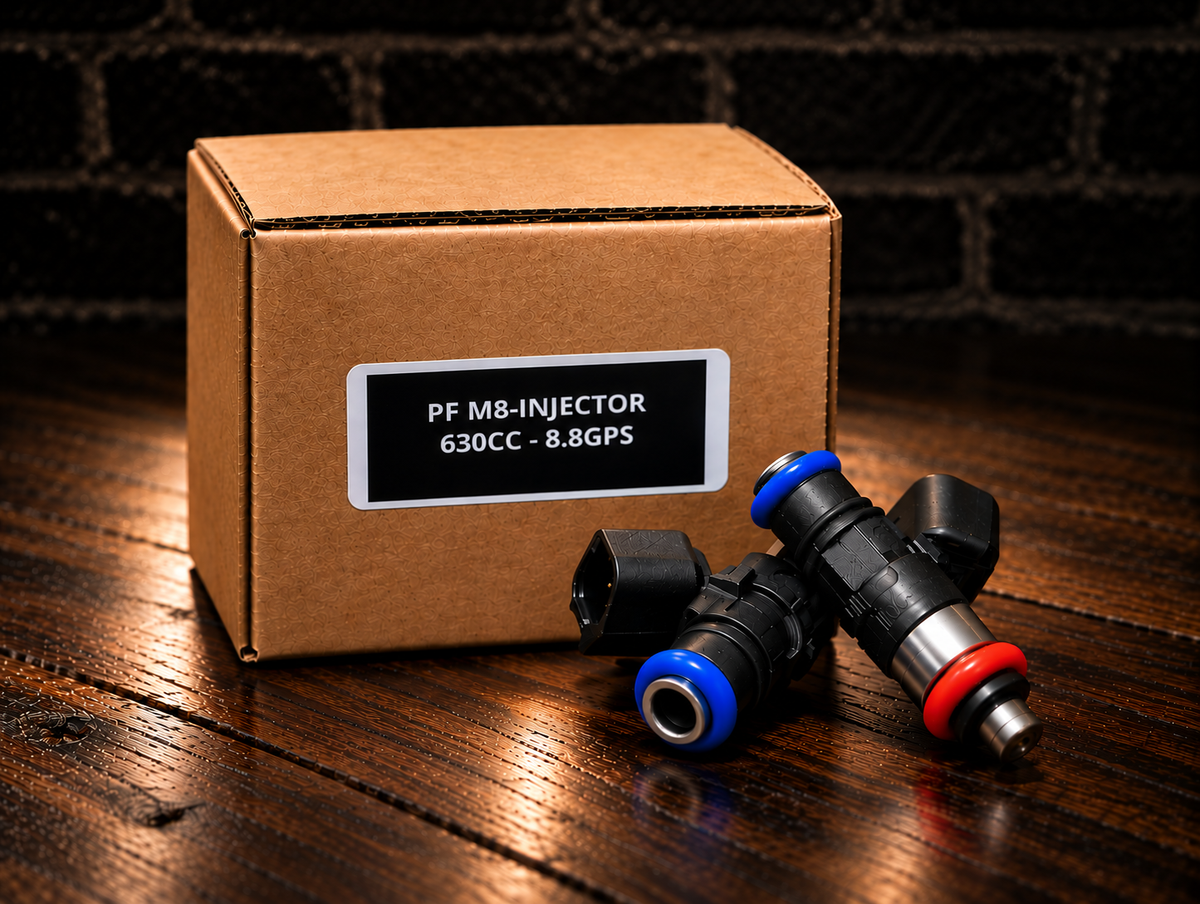

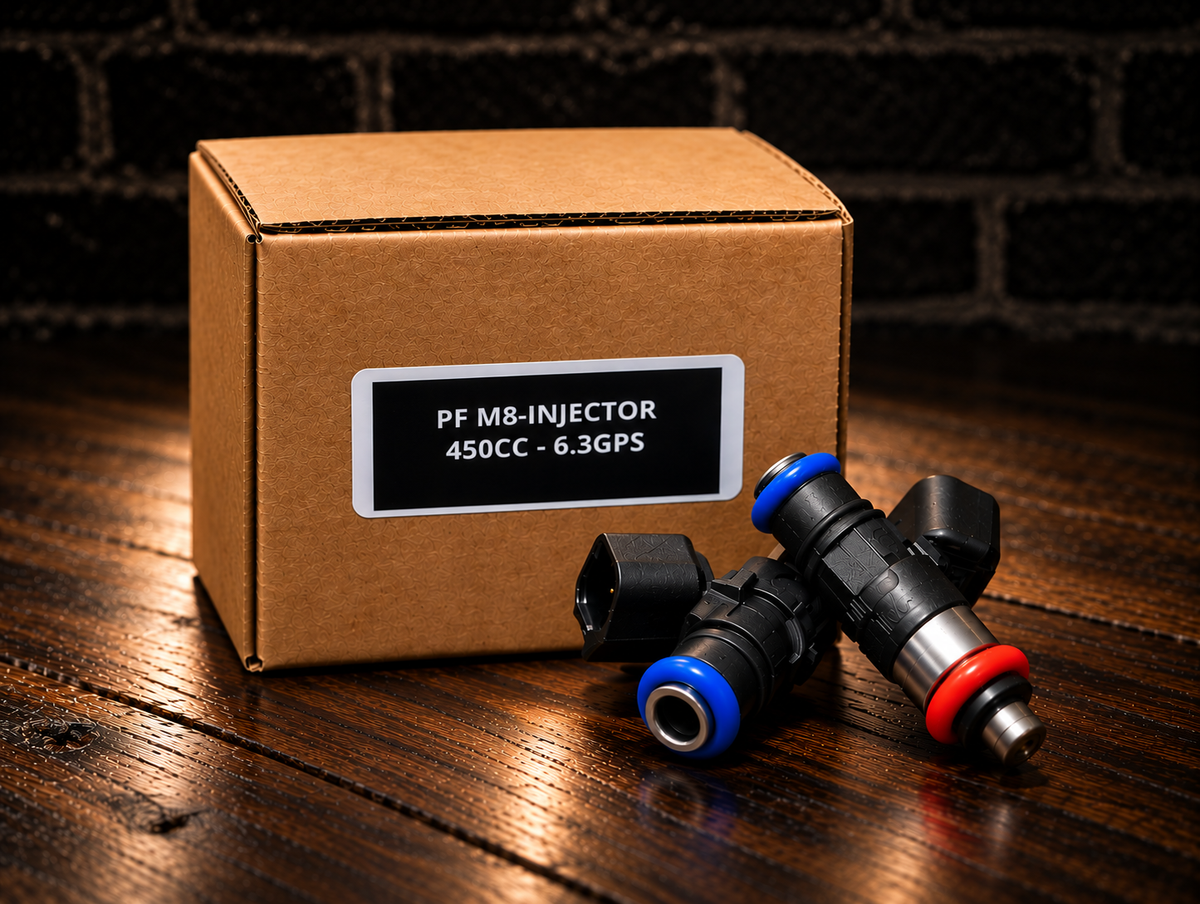

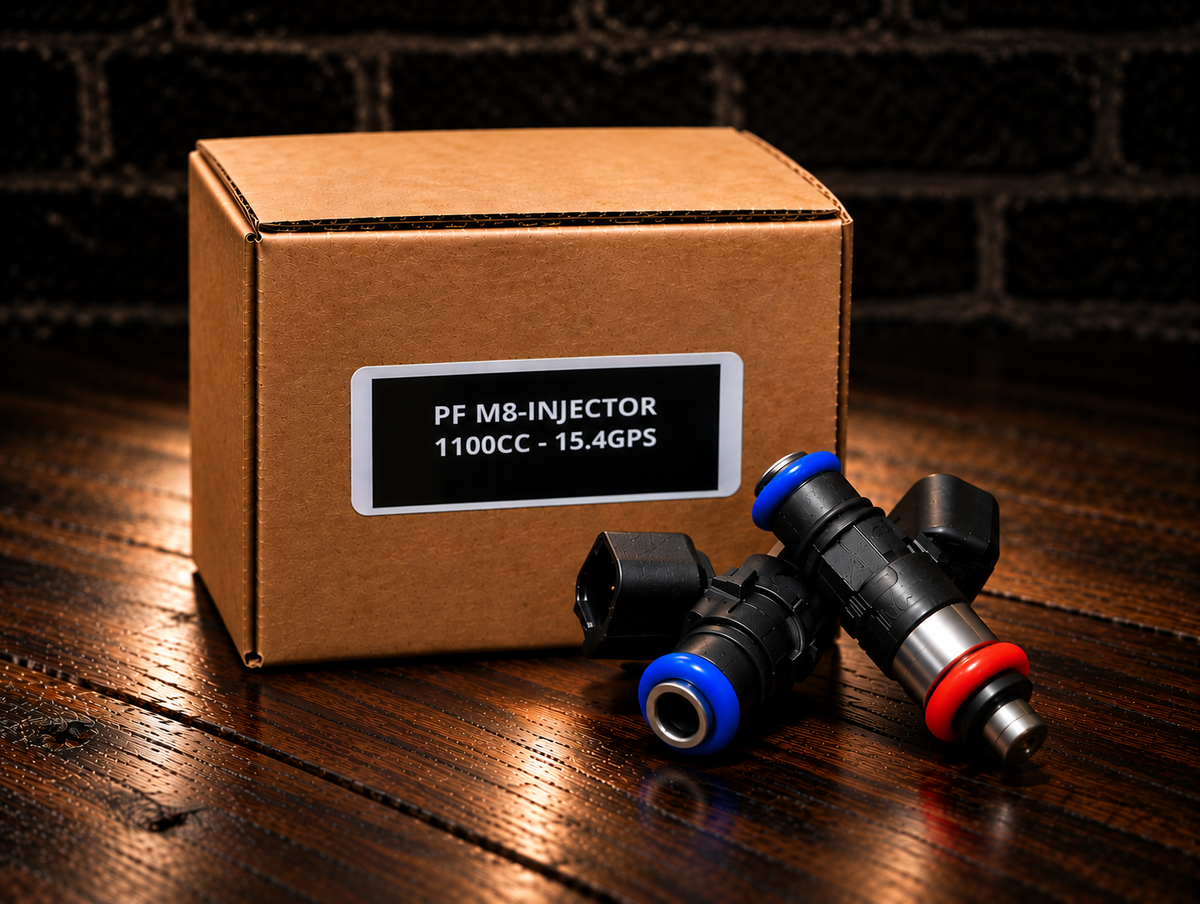

• 450cc, 550cc, 630cc, 850cc, 1100cc: 1 week lead time

Performance first.

Designed by Project Faster. Made in the USA.

Specs:

• Type: High-impedance, saturated, top-feed
• Body: Black composite
• Electrical connection: US-CAR
• Resistance: 12.5 ohms
• Overall length: 50 mm (2.0")
• O-ring to O-ring: 37 mm (1.5")
• Body diameter: 16 mm
• Upper O-ring: 14.5 mm Viton
• Lower O-ring: 15.0 mm Viton
• Sold as: Matched pair (2 injectors per set)

🚫 NO RETURNS OR EXCHANGES - All sales final

⚠️ IMPORTANT – PLEASE READ BEFORE ORDERING

Warranty Disclaimer

• All parts are sold without warranty
• Each part is inspected for manufacturer defects prior to shipping

Intended Use

• Parts are designed for competition and off-road use only
• Installation must be performed by a certified technician
• Proper bolt torque confirmation is required before installation
• Customers are responsible for ensuring compliance with provincial/state transportation laws

All sales are final. No returns or exchanges. View full warranty policy
